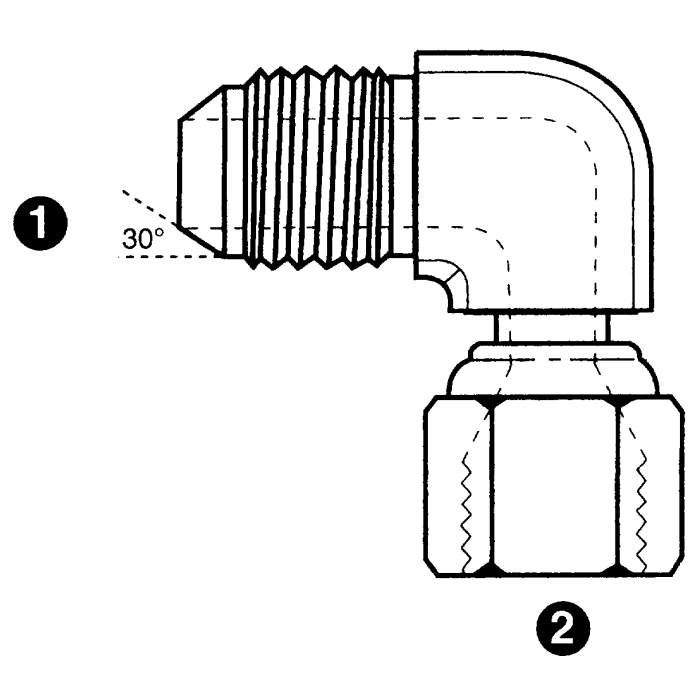

Steel Adapter, 3/4-14 Male JIS 30 deg Flare To 3/4-14 Female JIS 30 deg Flare Swivel, 90 deg Elbow

Alternate Part Numbers Alternate Part Number C1HE32	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9292-12-12	Thread 1 3/4-14	Thread 2 3/4-14	Thread Sealant No	Product Weight 0.70 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to turn a hose run 90 degrees, is this the elbow that keeps it JIS on both sides?

Question by: Roy B on Mar 30, 2026, 11:23 AM

For a right angle change while staying JIS, this adapter fits that job. It is a 90 degree steel elbow with a 3/4-14 male JIS 30 degree flare on one end and a 3/4-14 female JIS 30 degree flare swivel on the other, so it connects same-size JIS flare fittings.

Answer by: Customer Support on Mar 31, 2026, 6:54 PM

Reckon this'll work to hook up two 3/4-inch JIS fittings at a 90-degree angle? Just wanna make sure before I order.

Question by: Johnny H on Oct 8, 2025, 6:39 AM

For hydraulic circuits needing tight bends, this steel adapter connects 3/4-14 JIS 30-degree flare fittings at a right angle. The swivel on the female end should help with alignment during install too.

Answer by: Customer Support on Oct 10, 2025, 6:06 AM

Got a machine that uses JIS fittings and I need to make a 90-degree turn in the line without a lot of wiggle room to work with. This the right kind of fitting for that?

Question by: Brenda H on May 27, 2025, 6:06 PM

For tight-space routing where you need a right-angle direction change between same-size JIS lines, this is exactly what that situation calls for. Both ends are 3/4-14 JIS 30-degree flare, so as long as your existing connections match that thread and flare standard, it'll fit right in. The 90-degree elbow handles the directional change, and the swivel on the female end lets you get everything lined up without fighting the hose during assembly.

Answer by: Customer Support on May 28, 2025, 9:24 PM

Similar Products

Model Number	Thread 1	Thread 2
9292-04-04	1/4-19	1/4-19
9292-06-06	3/8-19	3/8-19
9292-12-12	3/4-14	3/4-14
