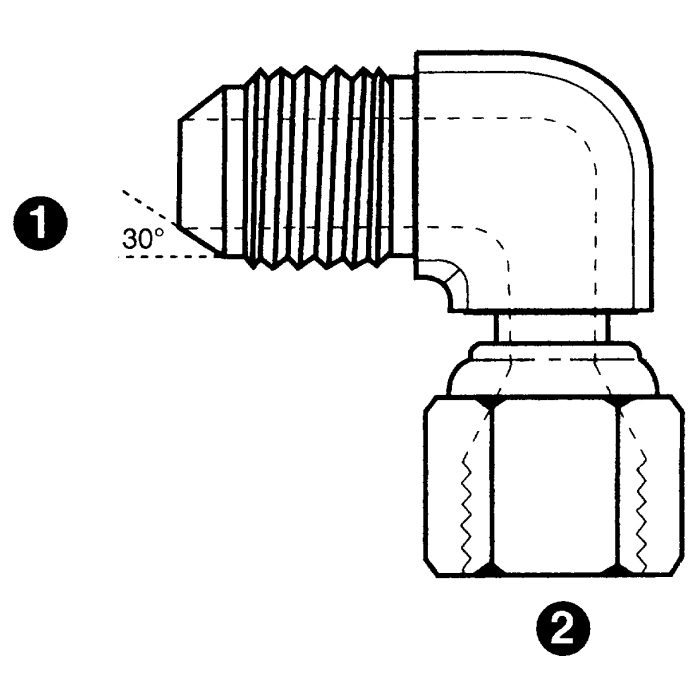

Steel Adapter, 3/8-19 Male JIS 30 deg Flare To 3/8-19 Female JIS 30 deg Flare Swivel, 90 deg Elbow

Alternate Part Numbers
Alternate Part Number C1HJ94, Alternate Part Number MI-02601127, Alternate Part Number MINO-03671X20000
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9292-06-06
Thread 1
3/8-19
Thread 2
3/8-19
Thread Sealant
No
Product Weight
0.25 lbs

Product Questions & Answers

Got a tight spot on a hydraulic line where I need to change direction without a lot of room to work with. This a 90-degree elbow or just marketed that way?
Question by: Dwight M on Oct 24, 2025, 6:09 AM
It's a true 90-degree elbow configuration. The bend is built into the adapter itself, so you can redirect a hydraulic line at a right angle without needing extra fittings or bends downstream. Both ends run 3/8-19 JIS thread with a 30-degree flare, and the female end is a swivel, which gives you some rotational play during installation so you're not fighting the line to get everything lined up.
Answer by: Customer Support on Oct 25, 2025, 3:23 PM

Similar Products

Model Number Thread 1 Thread 2 Price Buy Now
9292-04-04 1/4-19 1/4-19
9292-06-06 3/8-19 3/8-19
9292-12-12 3/4-14 3/4-14
