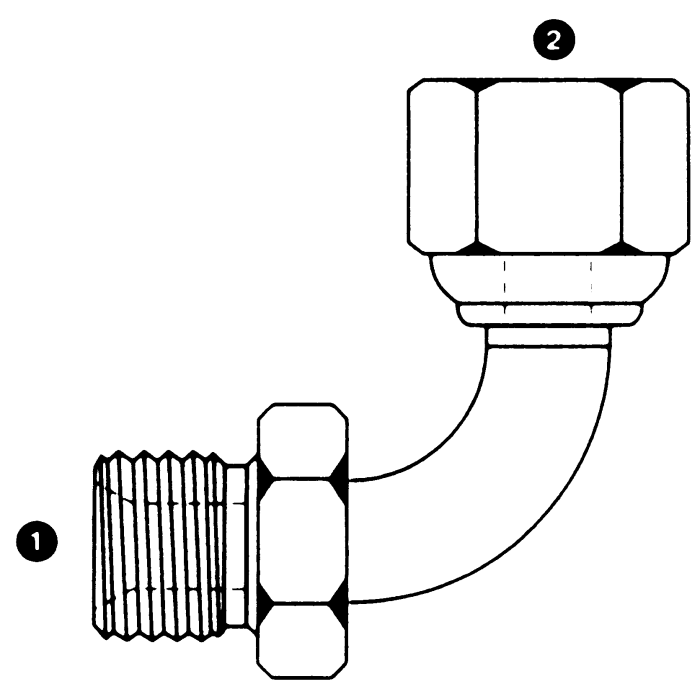

main product photo

Steel Adapter, 3/4-14 Male BSPP (British Parallel) To 3/4-14 Female BSPP (British Parallel), 90 deg Bent Tube Elbow

Ask A Question
Alternate Part Numbers
Alternate Part Number C1EK33, Alternate Part Number MI-02205787, Alternate Part Number MINO-03671X84733
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Includes
None
Supplier Part Number
9045-12-12
Thread 1
3/4-14
Thread 2
3/4-14
Thread Sealant
No
Product Weight
0.55 lbs
Product Questions & Answers 1

Product Questions & Answers

got a 3/4 BSPP male port on a hydraulic block and need to add a female swivel connection at a right angle, this the right fitting for that?
Question by: Gene B on Mar 10, 2026, 6:33 PM
That's what this adapter is built for. One end is a 3/4-14 male BSPP that threads into your port, and the other end is a 3/4-14 female BSPP swivel at 90 degrees. So you get your right-angle direction change and a swivel connection in one piece. Both threads are the same size, so no reducers or extra fittings needed in between.
Answer by: Customer Support on Mar 12, 2026, 6:19 AM

Similar Products

Model Number Thread 1 Thread 2 Includes Price Buy Now
9045-04-04 1/4-19 1/4-19 None
9045-06-06 3/8-19 3/8-19 None
9045-08-08 1/2-14 1/2-14 None
9045-12-12 3/4-14 3/4-14 None
9045-16-16 1-11 1-11 None
