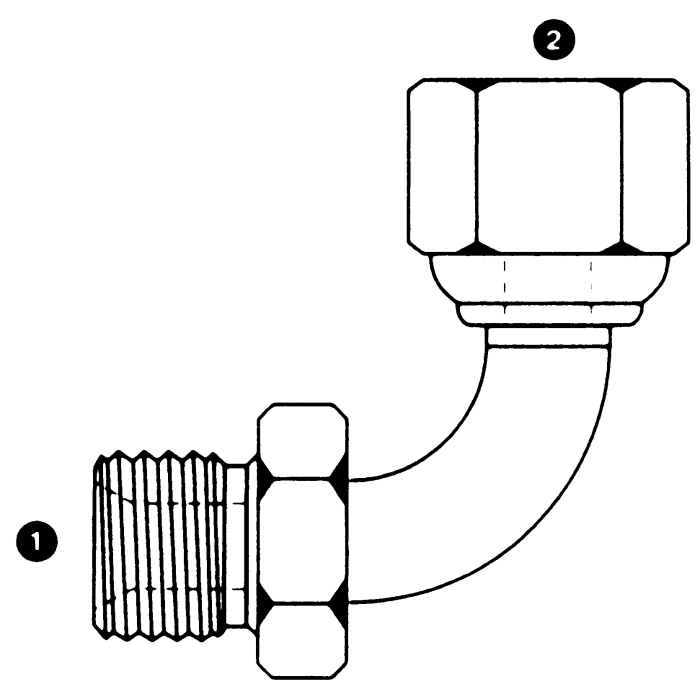

Steel Adapter, 1/2-14 Male BSPP (British Parallel) To 1/2-14 Female BSPP (British Parallel), 90 deg Bent Tube Elbow

Alternate Part Numbers
Alternate Part Number C1ZT69, Alternate Part Number MI-02205786, Alternate Part Number MINO-03671X84732
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Includes
None
Supplier Part Number
9045-08-08
Thread 1
1/2-14
Thread 2
1/2-14
Thread Sealant
No
Product Weight
0.30 lbs

Product Questions & Answers

both ends are the same 1/2-14 BSPP thread size, so what's actually the point of this fitting if they match up?
Question by: Frank H on Feb 16, 2026, 11:22 AM
Having matching thread sizes on both ends is exactly the purpose here. One end is male BSPP and the other is female BSPP, so this adapter lets you extend or reposition a BSPP line by adding a connection point in between. The 90-degree elbow angle is where the real value comes in. Instead of forcing a hose or tube to bend around an obstacle, this fitting makes that turn for you right at the joint, which keeps stress off the line and makes routing a lot cleaner in tight spaces.
Answer by: Customer Support on Feb 17, 2026, 5:47 PM

Similar Products

Model Number Thread 1 Thread 2 Includes Price Buy Now
9045-04-04 1/4-19 1/4-19 None
9045-06-06 3/8-19 3/8-19 None
9045-08-08 1/2-14 1/2-14 None
9045-12-12 3/4-14 3/4-14 None
9045-16-16 1-11 1-11 None
