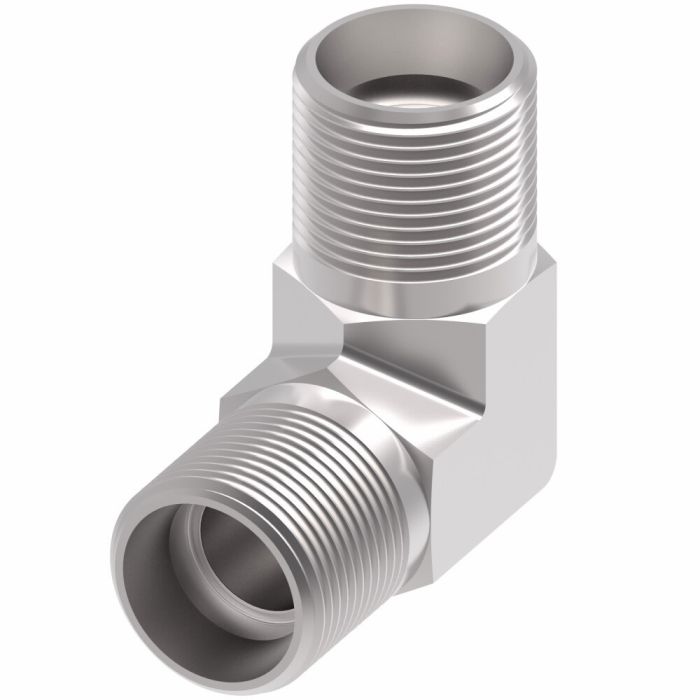

main product photo

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Ask A Question
A
0.85
Alternate Part Numbers
Alternate Part Number C1CU83, Alternate Part Number MI-00306433, Alternate Part Number MINO-00015F55511
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.29
C
0.43
Drop Dimension
1.29
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.56
End Size 2
0.44
End Type 1
ORS
End Type 2
SAE ORB
Hex Size 2
0.62
Minimum Working Temperature
-65
Seal Part if Included
FF9446-11|22617-4
Supplier Part Number
FF1868T0404S
Thread 1
9/16-18
Thread 2
7/16-20
Thread Sealant
No
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.12 lbs
Product Questions & Answers 3

Product Questions & Answers

got a tight spot on my lines. is this the 90 degree elbow that goes from 9/16-18 male ORFS over to 7/16-20 male SAE O-ring boss?
Question by: Tammy R on Feb 16, 2026, 10:28 AM
Matches that layout. One end is 9/16-18 Male SAE O-Ring Face Seal, and the other is 7/16-20 Male SAE O-Ring Boss with a straight thread O-ring, built as a 90 degree elbow.
Answer by: Customer Support on Feb 17, 2026, 3:42 PM
Will this here fitting hold up okay in a marine environment, say on a fishing boat?
Question by: Vince Y on Jul 19, 2025, 11:08 AM
This Eaton Aeroquip adapter is indeed well-suited for marine applications, along with chemical processing, pulp and paper, food and beverage, and even offshore drilling.
Answer by: Customer Support on Jul 21, 2025, 7:55 AM
got a 9/16-18 ORF seal fitting on a hydraulic line and need to drop down to a 7/16-20 ORB port on a valve block, this elbow gonna make that connection work?
Question by: Tony T on May 3, 2025, 9:02 AM
That's exactly what this fitting handles. One end is a 9/16-18 Male SAE O-Ring Face Seal and the other is a 7/16-20 Male SAE O-Ring Boss, so you're connecting two different thread and sealing standards in one piece. The 90-degree angle also takes care of routing in tight spots where a straight adapter just won't clear. It's made by Eaton Aeroquip, and the overall envelope runs about 1.29 inches on the long side with a 0.85-inch width, so measure your clearance before you button everything up.
Answer by: Customer Support on May 4, 2025, 3:53 PM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B C Price Buy Now
FF1868T0404S 0.25 9/16-18 7/16-20 0.85 1.29 0.43
FF1868T0406S 0.25 9/16-18 9/16-18 0.92 1.45 0.47
FF1868T0604S 0.38 11/16-16 7/16-20 0.98 1.37 0.43
FF1868T0606S 0.38 11/16-16 9/16-18 0.98 1.45 0.47
FF1868T0608S 0.38 11/16-16 3/4-16 1.04 1.6 0.55
FF1868T0806S 0.5 13/16-16 9/16-18 1.1 1.44 0.47
FF1868T0808S 0.5 13/16-16 3/4-16 1.1 1.6 0.55
FF1868T0810S 0.5 13/16-16 7/8-14 1.21 1.97 0.63
FF1868T0812S 0.5 13/16-16 1-1/16-12 1.32 2.17 0.73
FF1868T1010S 0.63 1-14 7/8-14 1.31 1.97 0.63
FF1868T1012S 0.63 1-14 1-1/16-12 1.41 2.17 0.73
FF1868T1212S 0.75 1-3/16-12 1-1/16-12 1.47 2.17 0.73
FF1868T1616S 1 1-7/16-12 1-5/16-12 1.64 2.35 0.73
