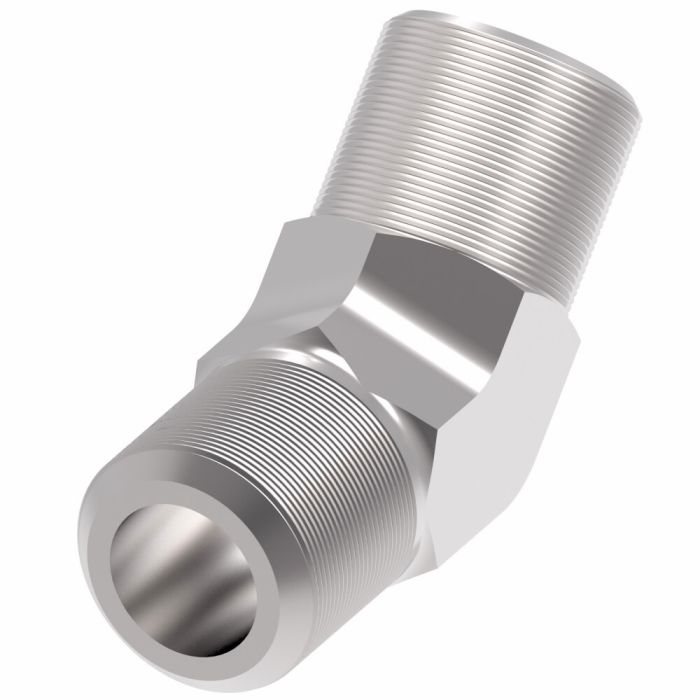

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

A 1.18	Alternate Part Numbers Alternate Part Number C1JA78	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 2.06	C 0.73	Drop Dimension 2.06	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Type 1 ORS	End Type 2 SAE ORB	Minimum Working Temperature -65	Supplier Part Number FF2068T1616S	Thread 1 1-7/16-12	Thread 2 1-5/16-12	Thread Sealant No	Tube O.D. 1	Tube O.D. 1	Product Weight 1.00 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap out an elbow fitting i bent up, is this one the ORFS to ORB deal with the 1-7/16-12 on one end and 1-5/16-12 on the other?

Question by: Tammy W on Dec 5, 2025, 7:53 PM

The ends on this adapter are a 1-7/16-12 male SAE O-Ring Face Seal on one side and a 1-5/16-12 male SAE O-Ring Boss straight thread O-Ring on the other, in a 45 degree elbow.

Answer by: Customer Support on Dec 7, 2025, 10:35 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B	C
FF2068T0404S	0.25	9/16-18	7/16-20	0.63	1.18	0.37
FF2068T0606S	0.38	11/16-16	9/16-18	0.74	1.3
FF2068T0808S	0.5	13/16-16	3/4-16	0.8	1.43	0.55
FF2068T1212S	0.75	1-3/16-12	1-1/16-12	1.02	1.97	0.73
FF2068T1616S	1	1-7/16-12	1-5/16-12	1.18	2.06	0.73
