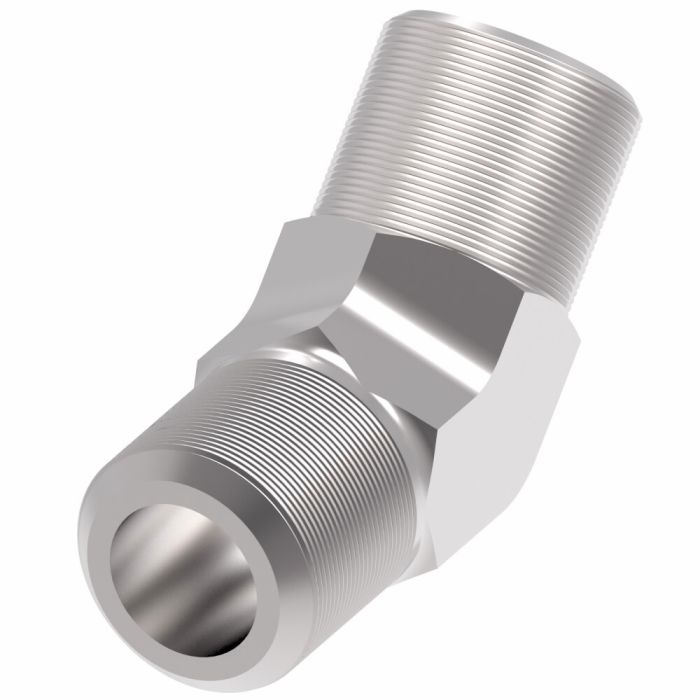

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

This 45-degree elbow adapter is designed to connect an SAE O-Ring Face Seal port to an SAE O-Ring Boss port. It's made for hydraulic applications needing a leak-resistant seal at both ends.

Both connections are male. One end is a 1-3/16-12 Male SAE O-Ring Face Seal (ORS) and the other end is a 1-1/16-12 Male SAE O-Ring Boss (straight thread O-ring), built as a 45 degree elbow.

A 45-degree configuration handles exactly that kind of situation. When routing lines through cramped assemblies, a straight adapter often creates binding or puts stress on the hose or tubing. The angled geometry here lets you redirect flow at 45 degrees, which takes pressure off the connection and gives you a cleaner, more manageable run through tight spaces. It connects an SAE O-Ring Face Seal port on one end to an SAE O-Ring Boss port on the other, so both ends get a proper seal rather than relying on thread contact alone.
