main product photo

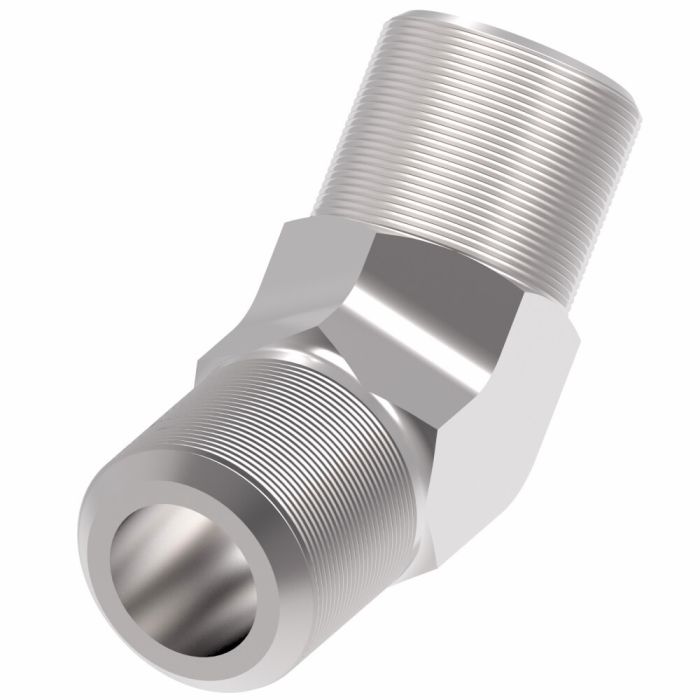

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

Ask A Question
A
0.80
Alternate Part Numbers
Alternate Part Number C1JA76, Alternate Part Number MI-00309254, Alternate Part Number MINO-00015F59322
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.43
C
0.55
Drop Dimension
1.43
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.81
End Size 2
0.75
End Type 1
ORS
End Type 2
SAE ORB
Minimum Working Temperature
-65
Supplier Part Number
FF2068T0808S
Thread 1
13/16-16
Thread 2
3/4-16
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.49 lbs
Product Questions & Answers 3

Product Questions & Answers

got a system running SAE ORB ports on one side and face seal fittings on the other, this adapter bridge that gap at a 45 degree angle?
Question by: Travis R on Jan 6, 2026, 3:54 PM
That's what this one does. One end is a 13/16-16 Male SAE O-Ring Face Seal and the other is a 3/4-16 Male SAE O-Ring Boss. The 45-degree angle gives you some routing flexibility when a straight adapter just won't work with your layout. Both thread sizes are stamped right into the part number, so there's no guessing on fit.
Answer by: Customer Support on Jan 8, 2026, 6:02 AM
Will this fitting work with a standard SAE O-ring?
Question by: Randy P on Oct 1, 2025, 3:56 PM
Yes, this adapter features SAE O-ring Face Seal and SAE O-ring Boss connections, so it's designed to work with standard SAE O-rings.
Answer by: Customer Support on Oct 2, 2025, 4:54 PM
got a tight spot on a hose run. is this the 45 degree elbow that goes from 13/16-16 male ORFS over to 3/4-16 male ORB?
Question by: Daryl H on Oct 3, 2025, 10:10 AM
For that combo, yes. One end is 13/16-16 Male SAE O-Ring Face Seal (ORFS) and the other end is 3/4-16 Male SAE O-Ring Boss (straight thread O-ring), and the body is a 45 degree elbow.
Answer by: Customer Support on Oct 4, 2025, 5:08 PM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B C Price Buy Now
FF2068T0404S 0.25 9/16-18 7/16-20 0.63 1.18 0.37
FF2068T0606S 0.38 11/16-16 9/16-18 0.74 1.3
FF2068T0808S 0.5 13/16-16 3/4-16 0.8 1.43 0.55
FF2068T1212S 0.75 1-3/16-12 1-1/16-12 1.02 1.97 0.73
FF2068T1616S 1 1-7/16-12 1-5/16-12 1.18 2.06 0.73
