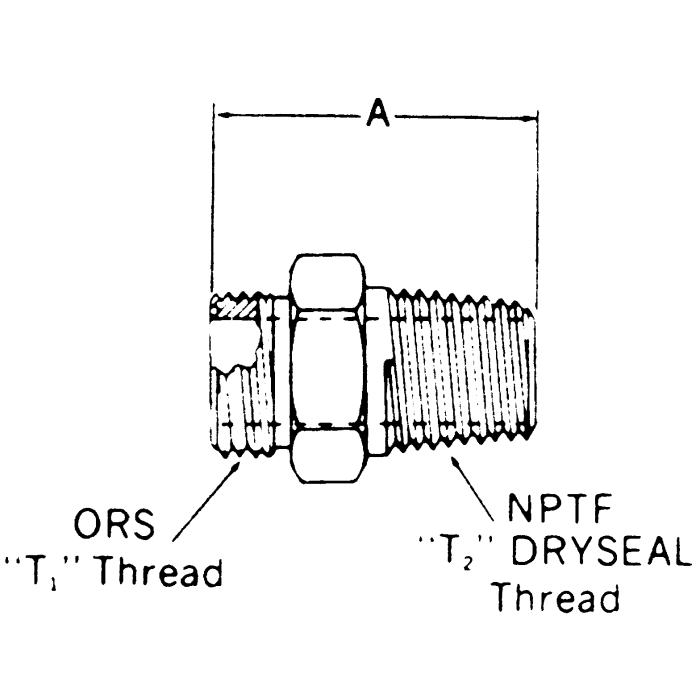

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

Alternate Part Numbers Alternate Part Number AFF2031T1016S, Alternate Part Number C1ED33, Alternate Part Number FF2404-10-16	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number FS2404-10-16	Thread 1 1-14	Thread 2 1-11-1/2	Thread Sealant No	Tube O.D. 0.63	Tube O.D. 0.63	Product Weight 0.43 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to connect an O-ring face seal line to a pipe thread fitting on a pump housing, would this adapter handle that kind of hookup?

Question by: Tammy H on Nov 16, 2025, 9:13 AM

That's exactly the kind of connection this piece is built for. One end is a 1-14 Male SAE O-Ring Face Seal and the other is a 1-11-1/2 Male NPT, so you'd be threading the NPT side into your pipe thread port and running your ORS line off the other end. Straight configuration means no angle change in the hydraulic connections, just a clean in-line transition between those two thread types.

Answer by: Customer Support on Nov 17, 2025, 5:20 PM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
FF2031T0404S	0.25	9/16-18	1/4-18	1.24
FF2031T0406S	0.25	9/16-18	3/8-18	1.24
FF2031T0604S	0.38	11/16-16	1/4-18	1.3
FF2031T0606S	0.38	11/16-16	3/8-18	1.3
FF2031T0608S	0.38	11/16-14	1/2-14	1.55
FF2031T0804S	0.5	13/16-16	1/4-18	1.36
FF2031T0806S	0.5	13/16-16	3/8-18	1.36
FF2031T0808S	0.5	13/16-16	1/2-14	1.61
FF2031T1008S	0.63	1-14	1/2-14	1.72
FF2031T1012S	0.63	1-14	3/4-14	1.78
FF2031T1212S	0.75	1-3/16-12	3/4-14	1.84
FF2031T1216S	0.75	1-3/16-12	1-11-1/2	2.03
FF2031T1612S	1	1-7/16-12	3/4-14	1.86
FF2031T1616S	1	1-7/16-12	1-11-1/2	2.05
FF2031T2020S	1.25	1-11/16-12	1-1/4-11-1/2	2.16
FS2404-08-12	0.5	13/16-16	3/4-14	1.69
FS2404-10-16	0.63	1-14	1-11-1/2
