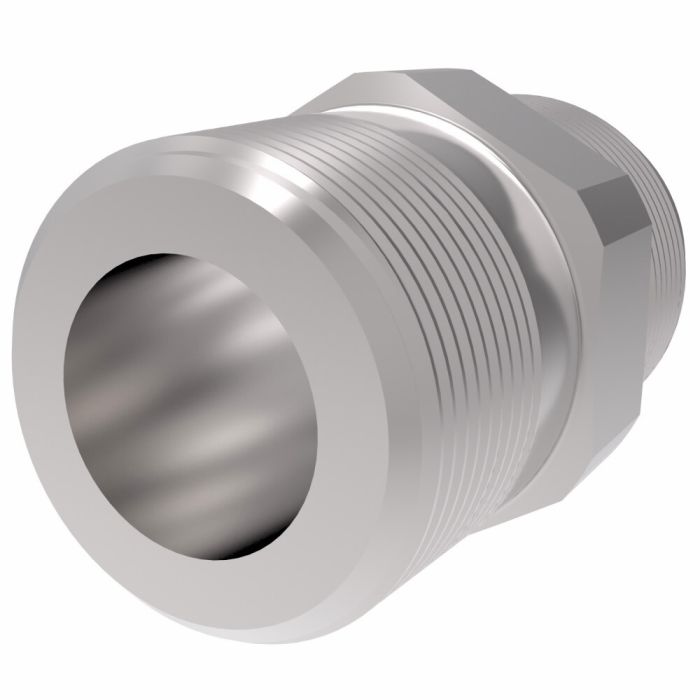

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-3/16-12 Male SAE O-Ring Face Seal, Straight

A 1.86	Alternate Part Numbers Alternate Part Number C1CU96, Alternate Part Number MI-00309247, Alternate Part Number MINO-00015F59315	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Type 1 ORS	End Type 2 ORS	Minimum Working Temperature -40	Seal Part if Included FF9446-18	Supplier Part Number FF2000T1212S	Thread 1 1-3/16-12	Thread 2 1-3/16-12	Thread Sealant No	Tube O.D. 0.75	Tube O.D. 0.75	Product Weight 0.41 lbs

Product Questions & Answers 1

Product Questions & Answers

what industries is this adapter actually rated for? got a few different applications and trying to figure out if it'll hold up

Question by: Jerry R on Jul 5, 2025, 10:38 AM

Rated applications for this part cover a pretty wide range: marine and military equipment, chemical processing, pulp and paper, food and beverage processing, and offshore drilling. Those are the confirmed service environments for this adapter, so if your application falls into any of those categories, you're working within its intended scope.

Answer by: Customer Support on Jul 7, 2025, 6:18 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
FF2000T1616S	1	1-7/16-12	1-7/16-12	1.94
FF2000T0404S	0.25	9/16-18	9/16-18	1.08
FF2000T0606S	0.38	11/16-16	11/16-16	1.22
FF2000T0806S	0.5	13/16-16	11/16-16	1.33
FF2000T0808S	0.5	13/16-16	13/16-16	1.39
FF2000T1010S	0.63	1-14	1-14	1.68
FF2000T1212S	0.75	1-3/16-12	1-3/16-12	1.86
FS2403-12-10		1-3/16-12	1-14	1.8
