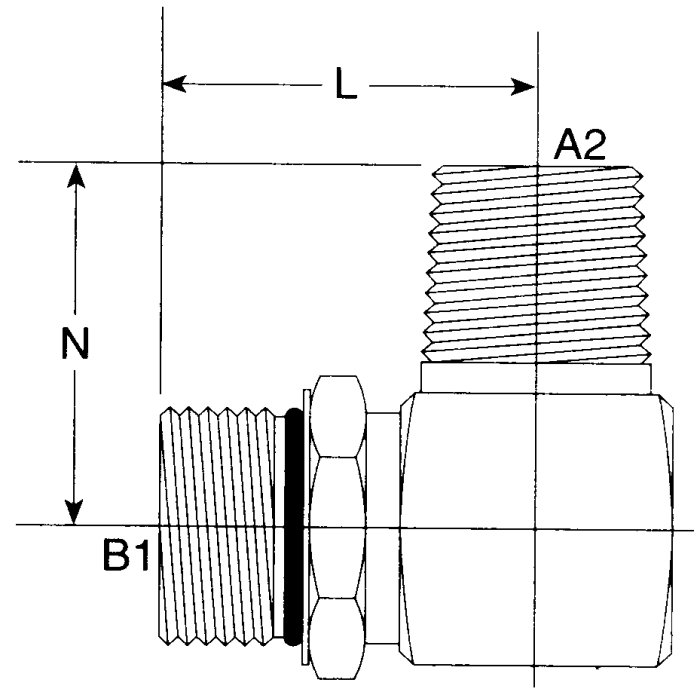

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-14 Male NPT, 90 deg Elbow

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	L 1.52	N 1.47	Supplier Part Number 6806-08-08-NWO-FG	Thread 1 3/4-16	Thread 2 1/2-14	Thread Sealant No	Tube O.D. 0.50	Tube O.D. 0.5	Product Weight 0.31 lbs

Product Questions & Answers

What’s the deal with the threads on this thing, metric or standard?

Question by: Dean R on Jul 9, 2025, 11:22 AM

It's got two different kinds: one end is a 3/4-16 SAE O-Ring Boss, and the other is a 1/2-14 Male NPT, which is a standard tapered pipe thread.

Answer by: Customer Support on Jul 11, 2025, 9:00 AM

Model Number	Tube O.D.	Thread 1	Thread 2	L	N
6806-04-04-NWO	0.25	7/16-20	1/4-18	1.09	1.09
6806-06-04-NWO	0.38	9/16-18	1/4-18	1.25	1.09
6806-06-06-NWO	0.38	9/16-18	3/8-18	1.35	1.22
6806-08-06-NWO	0.5	3/4-16	3/8-18	1.45	1.22
6806-12-12-NWO	0.75	1-1/16-12	3/4-14	1.94	1.59
6806-08-08-NWO	0.5	3/4-16	1/2-14	1.52	1.47
6806-10-08-NWO	0.63	7/8-14	1/2-14	1.7	1.47
