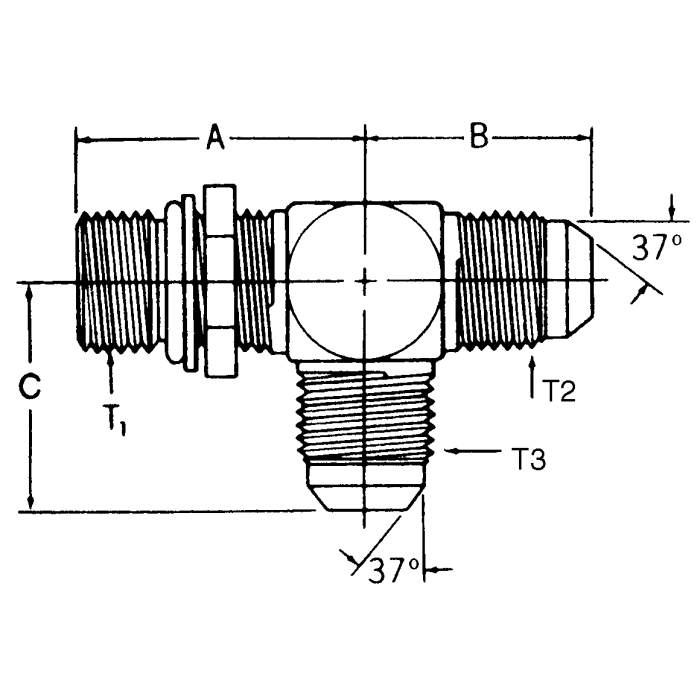

Steel Adapters, Male SAE O-Ring Boss (Straight Thread O-Ring) Run To Male JIC 37 deg Flare Run & Branch, Tee
Products
| Model Number | Tube O.D. | Thread 1 | Thread 2 | A | B | C | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| 203005-12-12S | 0.75 | 1-1/16-12 | 1-1/16-12 | 1.94 | 1.66 | 1.66 |
|
|
| 203005-16-16S | 1 | 1-5/16-12 | 1-5/16-12 | 2.05 | 1.81 | 1.81 |
|
|
| 203005-6-6S | 0.38 | 9/16-18 | 9/16-18 | 1.25 | 1.06 | 1.06 |
|
|
| 203005-8-8S | 0.5 | 3/4-16 | 3/4-16 | 1.45 | 1.25 | 1.25 |
|
|
| 203005-4-4S | 0.25 | 7/16-20 | 7/16-20 | 1.03 | 0.89 | 0.89 |
|
