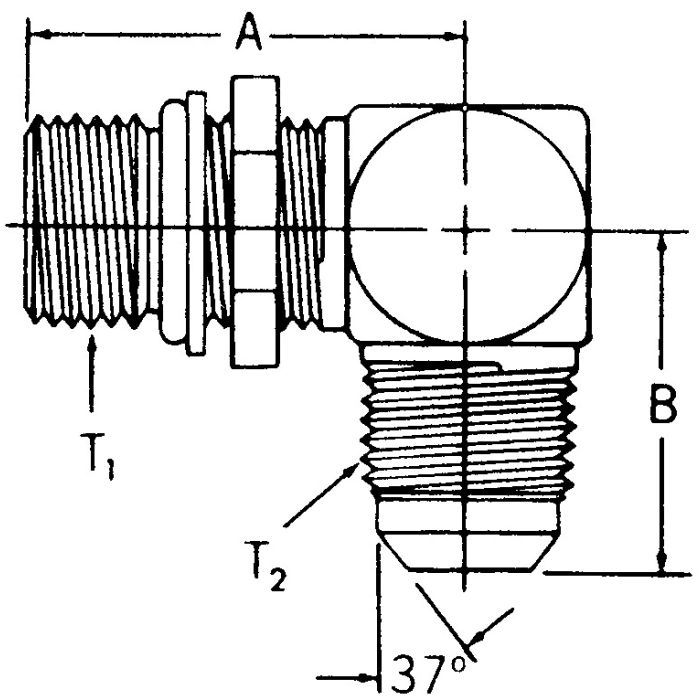

main product photo

Steel Adapter, 1-3/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-3/16-12 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question
A
2
Alternate Part Numbers
Alternate Part Number 6801-14-14, Alternate Part Number A2062-14-14S, Alternate Part Number C1BY15, Alternate Part Number MI-03689868, Alternate Part Number MINO-00028X10015
B
1.72
Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
6801-14-14-NWO-FG
Thread 1
1-3/16-12
Thread 2
1-3/16-12
Thread Sealant
No
Tube O.D.
0.88
Tube O.D.
0.88
Product Weight
0.89 lbs
Product Questions & Answers 1

Product Questions & Answers

Got a #14 ORB port on a hydraulic manifold and need to swing the line 90 degrees out to a JIC hose end. this the right fitting for that?
Question by: Stan H on Apr 21, 2025, 12:08 PM
That's the job this one handles. One end threads into a 1-3/16-12 straight thread O-ring boss port, and the other end gives you a 1-3/16-12 male JIC 37-degree flare connection for your hose. The 90-degree elbow body lets you redirect the line without bending the hose tight or fighting for clearance around the port. Both threads are the same size, so there's no reducing going on here. It's a same-size, straight-swap elbow for that exact port-to-hose situation.
Answer by: Customer Support on Apr 23, 2025, 6:10 AM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Buy Now
2062-10-10S 0.63 7/8-14 7/8-14 1.71 1.45
2062-10-12S 0.75 7/8-14 1-1/16-12 1.78 1.66
2062-10-6S 0.38 7/8-14 9/16-18 1.7 1.14
2062-10-8S 0.5 7/8-14 3/4-16 1.71 1.25
2062-12-12S 0.75 1-1/16-12 1-1/16-12 1.94 1.66
2062-12-16S 1 1-1/16-12 1-5/16-12 2.05 1.81
2062-12-8S 0.5 1-1/16-12 3/4-16 1.94 1.36
2062-16-12S 0.75 1-5/16-12 1-1/16-12 2.05 1.76
2062-16-16S 1 1-5/16-12 1-5/16-12 2.05 1.81
2062-16-8S 0.5 1-5/16-12 3/4-16 2.05 1.47
2062-20-16S 1 1-5/8-12 1-5/16-12 2.2 2.09
2062-24-20S 1.25 1-7/8-12 1-5/8-12 2.39 2.2
2062-4-4S 0.25 7/16-20 7/16-20 1.03 0.89
2062-4-6S 0.38 7/16-20 9/16-18 1.19 1.06
2062-6-4S 0.25 9/16-18 7/16-20 1.25 1.05
2062-6-6S 0.38 9/16-18 9/16-18 1.25 1.06
2062-6-8S 0.5 9/16-18 3/4-16 1.32 1.25
2062-8-6S 0.38 3/4-16 9/16-18 1.45 1.14
2062-8-8S 0.5 3/4-16 3/4-16 1.45 1.25
2062-12-10S 0.63 1-1/16-12 7/8-14 1.93 1.54
2062-16-20S 1.25 1-5/16-12 1-5/8-12 2.21 2.06
2062-20-20S 1.25 1-5/8-12 1-5/8-12 2.25 2.06
2062-24-24S 1.5 1-7/8-12 1-7/8-12 2.39 2.33
2062-5-5S 0.31 1/2-20 1/2-20 1.09 0.95
2062-5-6S 0.38 1/2-20 9/16-18 1.19 1.06
2062-8-10S 0.63 3/4-16 7/8-14 1.54 1.45
2062-8-12S 0.75 3/4-16 1-1/16-12
6801-06-12-NWO 0.38 1-1/16-12 9/16-18 1.94 1.29
6801-08-04-NWO 0.5 7/16-20 3/4-16 1.18 1.25
6801-14-14-NWO 0.88 1-3/16-12 1-3/16-12 2 1.72
6801-16-08-NWO 1 3/4-16 1-5/16-12 1.74 1.81
6801-10-06-NWO 0.63 9/16-18 7/8-14 1.4 1.45
6801-03-03-NWO 0.19 3/8-24 3/8-24 0.92 0.86
6801-04-05-NWO 0.25 1/2-20 7/16-20 1.13 0.95
6801-05-04-NWO 0.31 7/16-20 1/2-20 1.06 0.98
6801-05-08-NWO 0.31 3/4-16 1/2-20 1.45 1.09
6801-16-10-NWO 1 7/8-14 1-5/16-12 1.93 1.81
