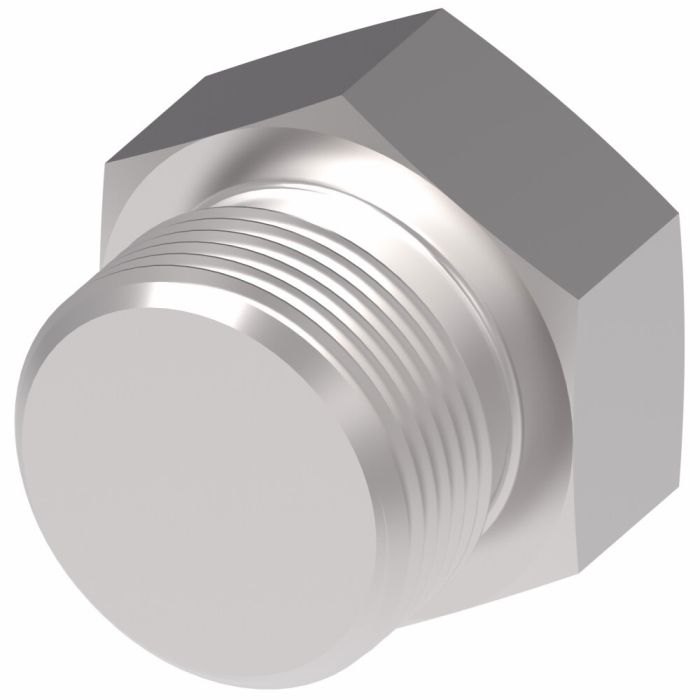

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) Hex Plug

Ask A Question
A
0.67
Alternate Part Numbers
Alternate Part Number C1CA99, Alternate Part Number MI-00320593, Alternate Part Number MINO-00015F65918
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.44
End Size 2
0.25
End Type 1
SAE ORB
End Type 2
ORB
Minimum Working Temperature
-40
Seal Part if Included
22617-4
Supplier Part Number
900598-4S
Thread 2
7/16-20
Thread Sealant
No
Product Weight
0.02 lbs
Product Questions & Answers 4

Product Questions & Answers

trying to replace a hex plug on an ORB port, is this the one with the 7/16-20 male thread?
Question by: Ray B on Dec 28, 2025, 3:10 PM
The key callout is the male SAE O-Ring Boss thread at 7/16-20. This part is a steel hex plug in the Danfoss 900598 series, and it includes seal part 22617-4.
Answer by: Customer Support on Dec 30, 2025, 10:38 AM
Will this plug work for hydraulic applications in a chemical processing plant?
Question by: Judy F on Mar 20, 2026, 2:42 PM
It's definitely suitable. This steel adapter is listed as being applicable for chemical processing environments.
Answer by: Customer Support on Mar 22, 2026, 6:58 AM
seal included with this plug, or do i need to order that separate?
Question by: Marvin W on Mar 4, 2026, 7:13 PM
Seal part 22617-4 comes included with this adapter, so you won't need to track one down separately. That's the O-ring matched to the 7/16-20 thread, and it's already accounted for in the package.
Answer by: Customer Support on Mar 6, 2026, 5:55 PM
what industries is this plug actually rated for? trying to figure out if it'll hold up in our processing facility
Question by: Merle P on Oct 9, 2025, 11:36 AM
The 900598-4S carries application coverage across some pretty demanding environments, including chemical processing, food and beverage processing, pulp and paper, marine and military, and offshore drilling. A processing facility context lines up well with what this fitting is built around.
Answer by: Customer Support on Oct 10, 2025, 6:22 PM

Similar Products

Model Number Thread 2 A Price Buy Now
900598-10S 7/8-14 0.93
900598-12S 1-1/16-12 1.09
900598-20S 1-5/8-12 1.2
900598-4S 7/16-20 0.67
900598-6S 9/16-18 0.73
900598-8S 3/4-16 0.8
900598-16S 1-5/16-12 1.12
900598-32S 2-1/2-12 1.43
900598-5S 1/2-20 0.67
