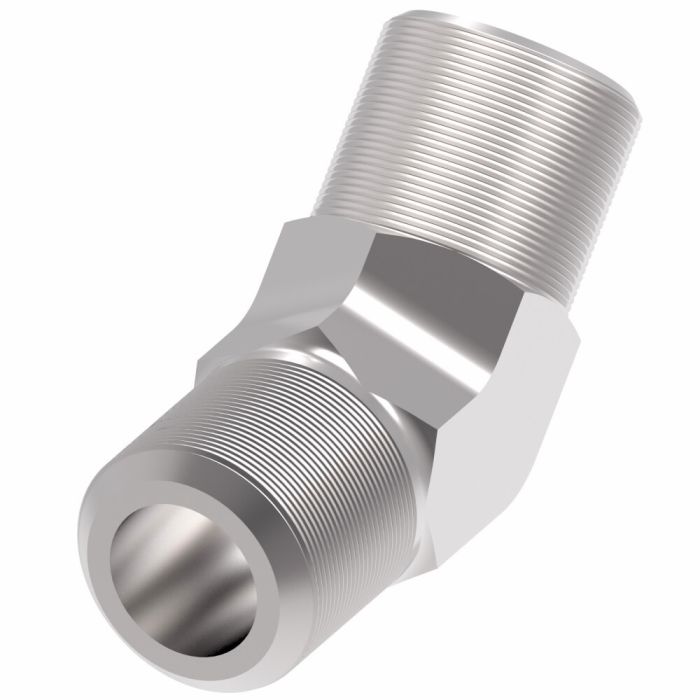

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/8-12 Male SAE 45 deg Flare, 45 deg Elbow

A 1.54	Alternate Part Numbers Alternate Part Number C1AV74, Alternate Part Number MI-00313368, Alternate Part Number MINO-00015F62102	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 1.69	Drop Dimension 1.59	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Type 1 NPTF	End Type 2 SAE 37	Minimum Working Temperature -65	Supplier Part Number 2023-20-20S	Thread 1 1-1/4-11-1/2	Thread 2 1-5/8-12	Thread Sealant No	Tube O.D. 1.25	Tube O.D. 1.25	Product Weight 1.15 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line coming off a hydraulic pump that's running 1-1/4 male NPT and I need to redirect it at an angle, does this fitting make that turn for me?

Question by: Lyle R on Oct 29, 2025, 8:37 PM

That's what this one does. It bridges a 1-1/4-11-1/2 male NPT thread to a 1-5/8-12 male SAE 45 degree flare connection, and the body itself is bent at 45 degrees, so you get a clean directional change right at the fitting. Steel construction, Eaton Aeroquip 2023 series. If your line is running straight and you need it to angle off without adding a separate elbow and adapter, this handles both jobs in one piece.

Answer by: Customer Support on Oct 31, 2025, 6:38 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2023-12-12S	0.75	3/4-14	1-1/16-12	1.2	1.28
2023-12-16S	1	3/4-14	1-5/16-12	1.29	1.47
2023-12-8S	0.5	3/4-14	3/4-16	1.2	1.1
2023-16-12S	0.75	1-11-1/2	1-1/16-12	1.48	1.52
2023-16-16S	1	1-11-1/2	1-5/16-12	1.48	1.47
2023-2-3S	0.19	1/8-27	5/16-18	0.58	0.76
2023-2-4S	0.25	1/8-27	7/16-20	0.58	0.76
2023-2-6S	0.38	1/8-27	9/16-18	0.72	0.83
2023-20-20S	1.25	1-1/4-11-1/2	1-5/8-12	1.54	1.69
2023-24-24S	1.5	1-1/2-11-1/2	1-7/8-12	1.77	1.78
2023-32-32S	2	2-11-1/2	2-1/2-12	2.11	2.22
2023-4-4S	0.25	1/4-18	7/16-20	0.86	0.82
2023-4-6S	0.38	1/4-18	9/16-18	0.86	0.83
2023-4-8S	0.5	1/4-18	3/4-16	0.95	1.04
2023-6-10S	0.63	3/8-18	7/8-14	0.96	1.14
2023-6-4S	0.25	3/8-18	7/16-20	0.95	0.79
2023-6-6S	0.38	3/8-18	9/16-18	0.95	0.88
2023-6-8S	0.5	3/8-18	3/4-16	0.95	0.98
2023-8-10S	0.63	1/2-14	7/8-14	1.17	1.11
2023-8-12S	0.75	1/2-14	1-1/16-12	1.2	1.39
2023-8-6S	0.38	1/2-14	9/16-18	1.17	0.91
2023-8-8S	0.5	1/2-14	3/4-16	1.17	1
