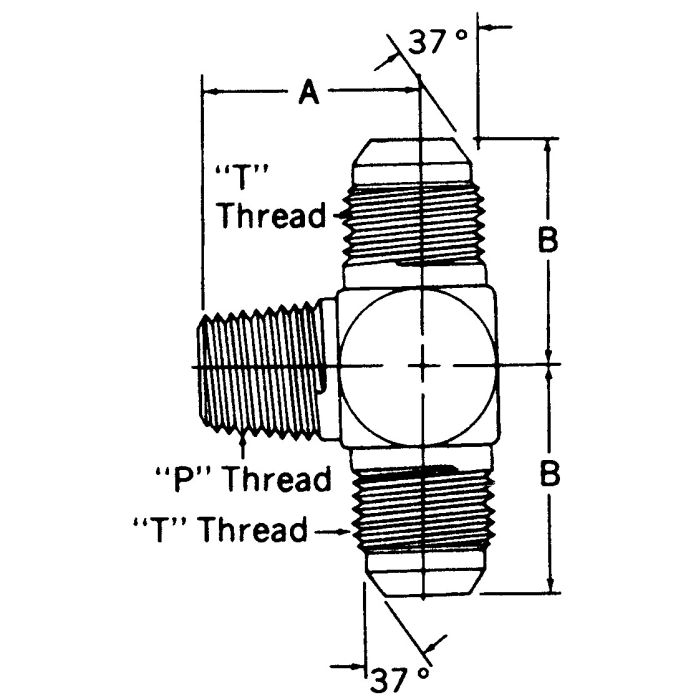

Steel Adapter, 1/8-27 Male NPT Branch To 1/2-20 Male JIC 37 deg Flare Run, Tee

A 0.78	Alternate Part Numbers Alternate Part Number A2030-2-5S, Alternate Part Number C1DW47	B 0.95	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2601-05-05-02-FG	Thread 1 1/8-27	Thread 2 1/2-20	Thread Sealant No	Tube O.D. 0.31	Tube O.D. 0.31	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out a tee i busted, is this one the kind that’s got 1/8-27 npt on the branch and 1/2-20 jic on the run?

Question by: Marvin W on Jul 14, 2025, 12:10 PM

Fit comes down to the thread callouts. This tee is a pipe to 37 degree flare steel adapter with a 1/8-27 male NPT branch and a 1/2-20 male JIC 37 degree flare on the run ports.

Answer by: Customer Support on Jul 15, 2025, 4:19 PM

got a 1/8 NPT port on a small hydraulic manifold and need to tee off to a JIC line, this the right fitting for that?

Question by: Denise M on Dec 30, 2025, 9:22 AM

That setup is exactly what this adapter handles. The branch side is 1/8-27 Male NPT, which threads into your manifold port, and the run connections are 1/2-20 Male JIC 37 degree flare. So you can split off a JIC line right at that NPT port without any additional adapters in between.

Answer by: Customer Support on Dec 31, 2025, 7:56 PM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2030-12-12S	0.75	3/4-14	1-1/16-12	1.59	1.66
2030-16-16S	1	1-11-1/2	1-5/16-12	1.97	1.81
2030-2-4S	0.25	1/8-27	7/16-20	0.78	0.89
2030-4-4S	0.25	1/4-18	7/16-20	1.09	1.05
2030-4-6S	0.38	1/4-18	9/16-18	1.09	1.06
2030-6-6S	0.38	3/8-18	9/16-18	1.22	1.06
2030-8-10S	0.63	1/2-14	7/8-14	1.47	1.45
2030-8-8S	0.5	1/2-14	3/4-16	1.47	1.33
2601-05-05-02	0.31	1/8-27	1/2-20	0.78	0.95
2601-05-05-04	0.31	1/4-18	1/2-20	1.09	1.05
2601-10-10-12	0.63	3/4-14	7/8-14	1.59	1.55
