main product photo

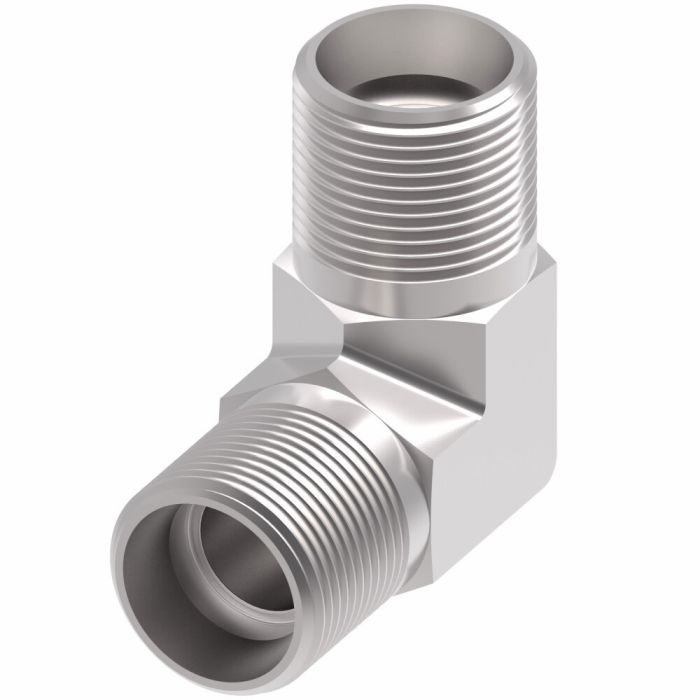

Steel Adapter, 3/4-14 Male NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question
A
1.78
Alternate Part Numbers
Alternate Part Number C1AV89, Alternate Part Number CONSX0142, Alternate Part Number MI-00312727, Alternate Part Number MINO-00015F61685
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.81
Drop Dimension
1.81
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.75
End Type 1
NPTF
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2024-12-16S
Thread 1
3/4-14
Thread 2
1-5/16-12
Thread Sealant
No
Tube O.D.
1
Tube O.D.
1
Product Weight
0.66 lbs
Product Questions & Answers 3

Product Questions & Answers

trying to hook up a 3/4-14 pipe port to a -16 JIC line, is that what this elbow is for?
Question by: Frank P on Apr 10, 2025, 6:04 PM
For tying those two standards together, it matches a 3/4-14 male NPTF on one end and a 1-5/16-12 male SAE 37 degree (JIC) flare on the other, built as a 90 degree elbow.
Answer by: Customer Support on Apr 12, 2025, 8:16 AM
Will this fitting hold up okay if I'm running hydraulic fluid through it at, say, 2000 PSI?
Question by: Tony G on Aug 29, 2025, 3:14 PM
This Eaton Aeroquip adapter is designed for hydraulic applications within the marine, military, chemical processing, pulp and paper, and food and beverage industries, suggesting it's built to handle typical hydraulic pressures.
Answer by: Customer Support on Aug 31, 2025, 7:07 AM
got a tight spot on a hose run. is this the 90 elbow that goes from 3/4-14 male pipe over to a -16 male JIC flare?
Question by: Tony R on Oct 3, 2025, 5:37 PM
For routing in tight quarters, this adapter gives you a 90 degree elbow with a 3/4-14 male NPT connection on one end and a 1-5/16-12 male JIC 37 degree flare connection on the other, which is the -16 JIC size.
Answer by: Customer Support on Oct 5, 2025, 3:17 PM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Buy Now
2024-12-12S 0.75 3/4-14 1-1/16-12 1.59 1.66
2024-12-16S 1 3/4-14 1-5/16-12 1.78 1.81
2024-12-6S 0.38 3/4-14 9/16-18 1.59 1.31
2024-12-8S 0.5 3/4-14 3/4-16 1.59 1.42
2024-16-12S 0.75 1-11-1/2 1-1/16-12 1.97 1.76
2024-16-16S 1 1-11-1/2 1-5/16-12 1.97 1.81
2024-2-3S 0.19 1/8-27 3/8-24 0.78 0.83
2024-2-4S 0.25 1/8-27 7/16-20 0.78 0.89
2024-2-6S 0.38 1/8-27 9/16-18 0.9 1.06
2024-20-20S 1.25 1-1/4-11-1/2 1-5/8-12 2.38 2.06
2024-24-20S 1.25 1-1/2-11-1/2 1-5/8-12 2.64 2.3
2024-24-24S 1.5 1-1/2-11-1/2 1-7/8-12 2.64 2.33
2024-32-32S 2 2-11-1/2 2-1/2-12 3 3.08
2024-4-4S 0.25 1/4-18 7/16-20 1.09 1.05
2024-4-6S 0.38 1/4-18 9/16-18 1.09 1.06
2024-6-6S 0.38 3/8-18 9/16-18 1.22 1.14
2024-6-8S 0.5 3/8-18 3/4-16 1.22 1.25
2024-8-10S 0.63 1/2-14 7/8-14 1.47 1.45
2024-8-4S 0.25 1/2-14 7/16-20 1.47 1.02
2024-8-6S 0.38 1/2-14 9/16-18 1.47 1.13
2024-8-8S 0.5 1/2-14 3/4-16 1.47 1.33
2501-12-20 0.75 1-1/4-11-1/2 1-1/16-12 2.38 1.95
2024-12-10S 0.63 3/4-14 7/8-14 1.59 1.54
2024-16-20S 1.25 1-11-1/2 1-5/8-12 2.13 2.06
2024-16-8S 0.5 1-11-1/2 3/4-16 1.95 1.47
2024-2-5S 0.31 1/8-27 1/2-20 0.8 0.95
2024-20-16S 1 1-1/4-11-1/2 1-5/16-12 2.38 2.09
2024-20-24S 1.5 1-1/4-11-1/2 1-7/8-12 2.5 2.33
2024-4-5S 0.31 1/4-18 1/2-20 1.09 1.05
2024-4-8S 0.5 1/4-18 3/4-16 1.22 1.25
2024-6-10S 0.63 3/8-18 7/8-14 1.28 1.45
2024-6-12S 0.75 3/8-18 1-1/16-12 1.33 1.66
2024-6-4S 0.25 3/8-18 7/16-20 1.22 0.98
2024-8-12S 0.75 1/2-14 1-1/16-12 1.59 1.66
2501-16-24 1.5 1-1/2-11-1/2 1-5/16-12 2.64 2.14
2501-04-12 0.25 3/4-14 7/16-20 1.59 1.35
2501-10-16 0.63 1-11-1/2 7/8-14 1.97 1.66
