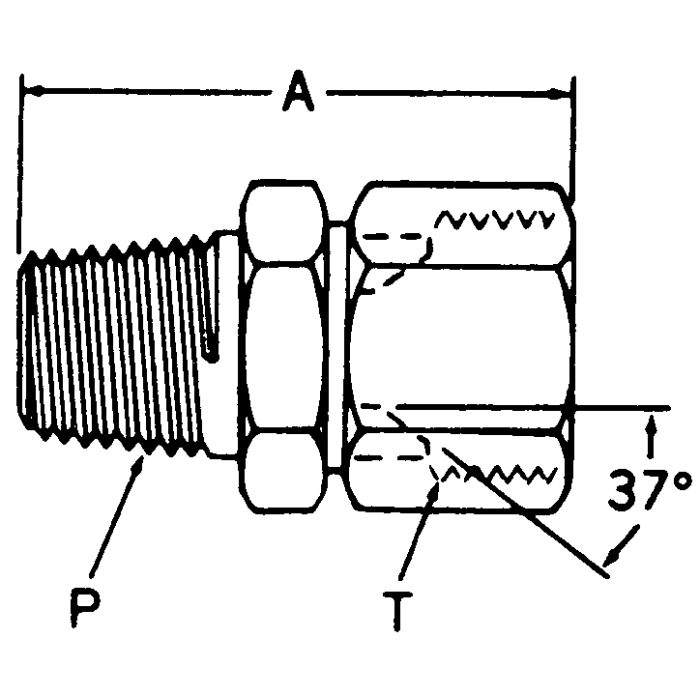

Steel Adapter, 3/4-14 Male NPT To 7/8-14 Female JIC 37 deg Flare Swivel, Straight

A 1.93	Alternate Part Numbers Alternate Part Number C1DY71, Alternate Part Number MI-00338334, Alternate Part Number MINO-00028F77389	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6505-12-10	Thread 1 3/4-14	Thread 2 7/8-14	Thread Sealant No	Tube O.D. 0.63	Product Weight 0.29 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this adapter hold up okay if I'm using it for hydraulics on a farm tractor?

Question by: Judy P on Jul 21, 2025, 3:09 PM

Built from resilient steel, this adapter should offer good durability for typical farm hydraulic applications.

Answer by: Customer Support on Jul 23, 2025, 6:42 AM

Got a line running 3/4 NPT male coming off a pump and need to tie into a JIC 37 female swivel fitting on the hose end. This the right adapter for that swap?

Question by: Janice H on Oct 10, 2025, 11:41 AM

That's what this one's built for. One end is 3/4-14 male NPT and the other is 7/8-14 female JIC 37 degree flare swivel, straight configuration. As long as your hose end is a 7/8-14 female JIC 37 degree flare, you're looking at a direct fit. The swivel on the JIC side makes alignment a lot easier during install, which helps in tighter spaces where you can't always get a clean straight-on connection.

Answer by: Customer Support on Oct 12, 2025, 8:28 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2018-12-12S	0.75	3/4-14	1-1/16-12	2.15
2018-16-16S	1	1-11-1/2	1-5/16-12	2.54
2018-4-6S	0.38	1/4-18	9/16-18	1.59
2018-6-8S	0.5	3/8-18	3/4-16	1.74
2018-8-8S	0.5	1/2-14	3/4-16
2018-2-4S	0.25	1/8-27	7/16-20	1.32
2018-20-20S	1.25	1-1/4-11-1/2	1-5/8-12	2.78
2018-6-6S	0.38	3/8-18	9/16-18	1.72
6505-04-05	0.31	1/4-18	1/2-20	1.41
6505-06-10	0.63	3/8-18	7/8-14	1.86
6505-08-12	0.75	1/2-14	1-1/16-12	2.17
6505-12-10	0.63	3/4-14	7/8-14	1.93
6505-24-24	1.5	1-1/2-11-1/2	1-7/8-12	2.93
6505-04-04	0.25	1/4-18	7/16-20	1.45
6505-0606	0.38	3/8-18	9/16-18	1.72
6505-0810	0.5	1/2-14	7/8-14	2.28
6505-1216	1	3/4-14	1-5/16-12	2.4
