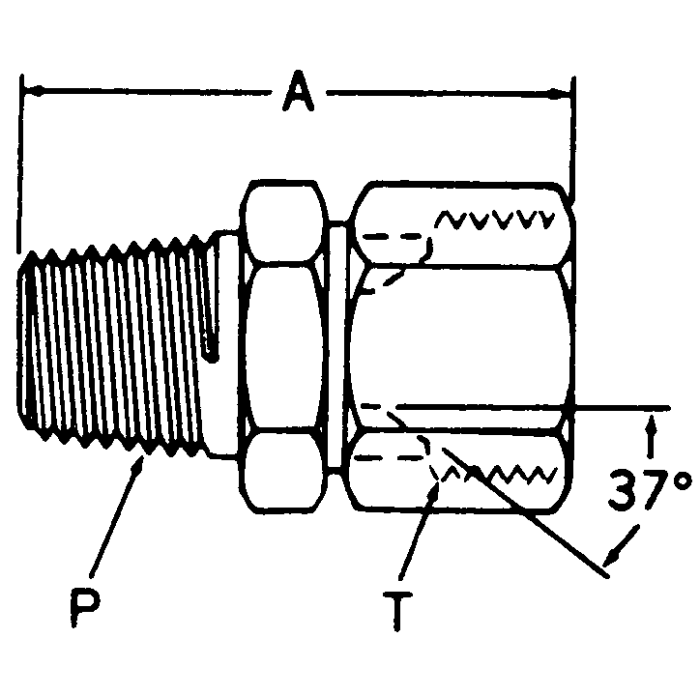

Steel Adapter, 3/8-18 Male NPT To 7/8-14 Female JIC 37 deg Flare Swivel, Straight

A 1.86	Alternate Part Numbers Alternate Part Number C1DY69, Alternate Part Number MI-00325014, Alternate Part Number MINO-00028F67299	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6505-06-10	Thread 1 3/8-18	Thread 2 7/8-14	Thread Sealant No	Tube O.D. 0.63	Product Weight 0.21 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 3/8-18 npt port up to a #10 jic hose end. is this the right adapter?

Question by: Harold J on May 27, 2025, 8:50 AM

For that combo, it matches up. One side is 3/8-18 male NPT and the other side is 7/8-14 female JIC with a 37 degree flare swivel, which is the common thread size for a #10 JIC connection.

Answer by: Customer Support on May 28, 2025, 10:16 AM

Will this adapter work for connecting a 3/8 NPT male fitting to a 7/8 JIC female fitting?

Question by: Billy H on Apr 29, 2025, 5:27 PM

Yes, this steel adapter is designed to connect a 3/8-18 male NPT fitting to a 7/8-14 female JIC 37-degree flare fitting.

Answer by: Customer Support on Apr 30, 2025, 6:23 PM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2018-12-12S	0.75	3/4-14	1-1/16-12	2.15
2018-16-16S	1	1-11-1/2	1-5/16-12	2.54
2018-4-6S	0.38	1/4-18	9/16-18	1.59
2018-6-8S	0.5	3/8-18	3/4-16	1.74
2018-8-8S	0.5	1/2-14	3/4-16
2018-2-4S	0.25	1/8-27	7/16-20	1.32
2018-20-20S	1.25	1-1/4-11-1/2	1-5/8-12	2.78
2018-6-6S	0.38	3/8-18	9/16-18	1.72
6505-04-05	0.31	1/4-18	1/2-20	1.41
6505-06-10	0.63	3/8-18	7/8-14	1.86
6505-08-12	0.75	1/2-14	1-1/16-12	2.17
6505-12-10	0.63	3/4-14	7/8-14	1.93
6505-24-24	1.5	1-1/2-11-1/2	1-7/8-12	2.93
6505-04-04	0.25	1/4-18	7/16-20	1.45
6505-0606	0.38	3/8-18	9/16-18	1.72
6505-0810	0.5	1/2-14	7/8-14	2.28
6505-1216	1	3/4-14	1-5/16-12	2.4
