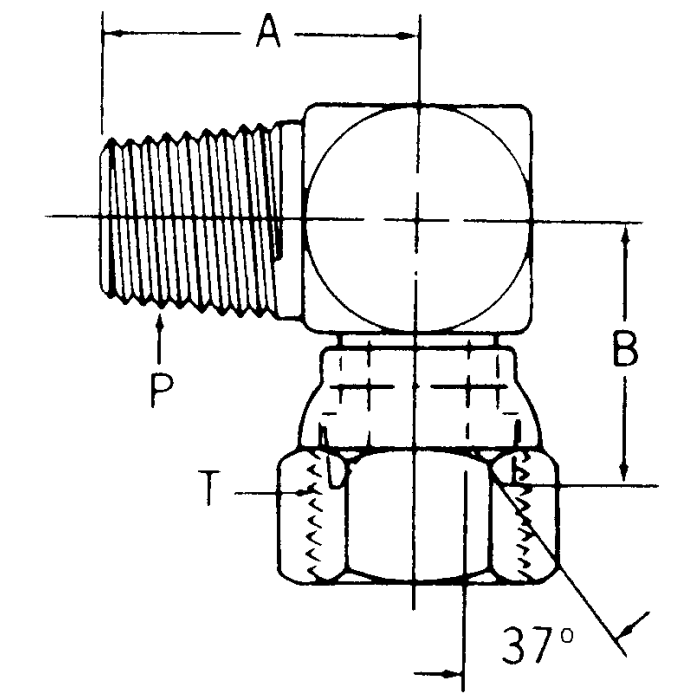

Steel Adapter, 1/2-14 Male NPT To 9/16-18 Female JIC 37 deg Flare Swivel, 90 deg Elbow

A 1.37	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6501-08-06-FG	Thread 1 1/2-14	Thread 2 9/16-18	Thread Sealant No	Tube O.D. 0.38	Product Weight 0.28 lbs

Product Questions & Answers 1

Product Questions & Answers

Reckon this'll work to get a hydraulic line turned 90 degrees? I got a tight spot.

Question by: Janet P on Feb 9, 2026, 9:10 AM

Designed for exactly that purpose, this steel adapter lets you change the direction of your hydraulic line by 90 degrees. It's got that swivel JIC end too, so you can line things up easier.

Answer by: Customer Support on Feb 10, 2026, 12:18 PM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2250-12-12S	0.75	3/4-14	1-1/16-12	1.5	1.01
2250-16-16S	1	1-11-1/2	1-5/16-12	1.95	1.27
2250-6-6S	0.38	3/8-18	9/16-18	1.22	0.77
2250-8-8S	0.5	1/2-14	3/4-16	1.47	1.01
2250-2-4S	0.25	1/8-27	7/16-20	0.76	0.66
2250-4-6S	0.38	1/4-18	9/16-18	1.06	0.7
2250-6-8S	0.5	3/8-18	3/4-16	1.22	0.98
2250-8-10S	0.63	1/2-14	7/8-14	1.47	0.98
6501-04-04	0.25	1/4-18	7/16-20	1.11	1.11
6501-04-05	0.31	1/4-18	1/2-20	1.09	1.11
6501-08-06	0.38	1/2-14	9/16-18	1.37
