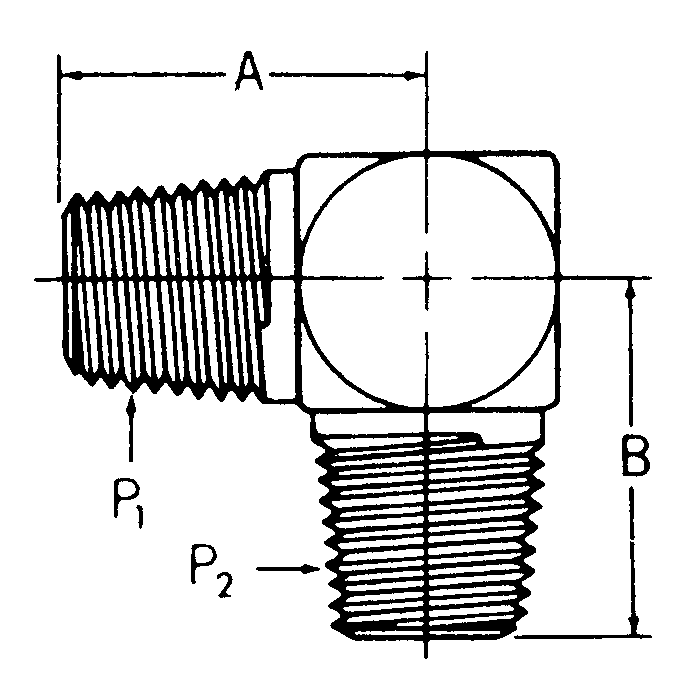

Steel Adapter, 1/4-18 Male NPT To 1/8-27 Male NPT, 90 deg Elbow

A 1.09	Alternate Part Numbers Alternate Part Number 2085-4-2S, Alternate Part Number A2085-4-2S, Alternate Part Number C1DX77, Alternate Part Number MI-01506880, Alternate Part Number MINO-00028J07575	B 0.84	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 5500-04-02-FG	Thread 1 1/4-18	Thread 2 1/8-27	Thread Sealant No	Product Weight 0.09 lbs

Product Questions & Answers 1

Product Questions & Answers

got a line running 1/4 NPT male and need to redirect it into a 1/8 NPT male port at a right angle -- this the right piece for that?

Question by: Lynn B on Oct 9, 2025, 2:03 PM

That's what this adapter is built for. One end is 1/4-18 male NPT and the other is 1/8-27 male NPT, and the 90-degree elbow lets you change direction right at the connection point. Both ends are male threads, so make sure the ports you're connecting into are female NPT on each side. If that matches your setup, this is the right part.

Answer by: Customer Support on Oct 10, 2025, 4:55 PM

Similar Products

Model Number	Thread 1	Thread 2	A	B
2085-12-12S	3/4-14	3/4-14	1.59	1.59
2085-12-8S	3/4-14	1/2-14	1.5	1.54
2085-16-16S	1-11-1/2	1-11-1/2	1.97	1.97
2085-6-6S	3/8-18	3/8-18	1.22	1.22
2085-8-8S	1/2-14	1/2-14	1.47	1.47
2085-2-2S	1/8-27	1/8-27	0.76	0.78
2085-4-4S	1/4-18	1/4-18	1.09	1.09
2085-6-4S	3/8-18	1/4-18	1.22	1.22
2085-8-6S	1/2-14	3/8-18	1.47	1.25
5500-04-02	1/4-18	1/8-27	1.09	0.84
5500-08-04	1/2-14	1/4-18	1.47	1.28
5500-20-20	1-1/4-11-1/2	1-1/4-11-1/2	2.38	2.38
