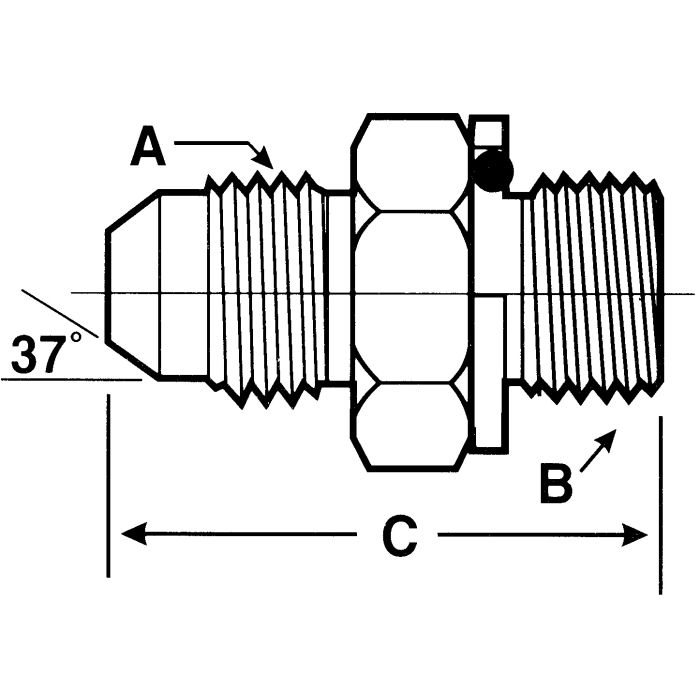

Steel Adapter, 7/16-20 Male JIC 37 deg Flare To M10 x 1 Male Metric Thread, Straight

Alternate Part Numbers Alternate Part Number C1DB37, Alternate Part Number M6400-0691, Alternate Part Number MI-00339346, Alternate Part Number MINO-00902F78399	C 1.18	Brand Air-Way Manufacturing Company	Brand Air-Way Manufacturing Company	Pack Size 0.00	UOM EA	Supplier Part Number M6400-0691	Thread 1 7/16-20	Thread 2 M10 x 1	Thread Sealant No	Tube O.D. 0.25	Tube O.D. 0.25	Product Weight 0.07 lbs

Product Questions & Answers 2

Product Questions & Answers

I'm hooking up some lines on an older machine, and one side's metric while the other is JIC. Will this adapter let me connect 'em straight up?

Question by: Janet L on May 2, 2025, 2:19 PM

Yes, this adapter directly joins a 7/16-20 Male JIC 37° flare fitting to an M10 x 1 male metric thread. It eliminates the need for extra fittings or custom work when connecting these two types of hydraulic lines.

Answer by: Customer Support on May 4, 2025, 6:01 AM

Got a metric port on a piece of equipment and need to tie into a JIC line, this a straight shot or is there anything in between I'd need?

Question by: Brett C on Jun 8, 2025, 7:59 AM

Straight connection, nothing extra needed. One end is 7/16-20 male JIC with a 37-degree flare, the other is M10 x 1 male metric thread. Both ends thread directly into their respective ports, so you're not adding any intermediate fittings or fabrication to the assembly. Overall length is 1.18 inches, so it stays compact in tight spaces.

Answer by: Customer Support on Jun 10, 2025, 6:01 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	C	Price	Buy Now
JM0410	0.25	7/16-20	M10 x 1	1.18
JM1020	0.63	7/8-14	M20 x 1.5	1.71
