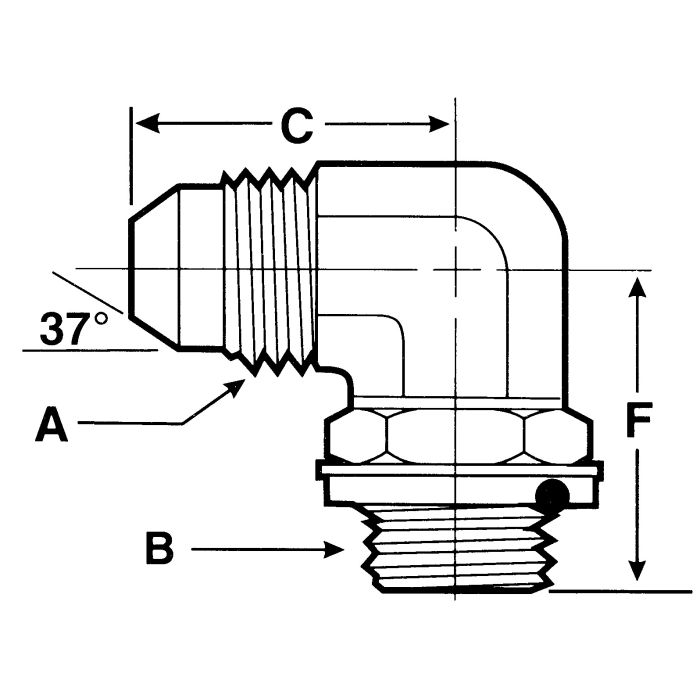

main product photo

Steel Adapter, 3/4-16 Male JIC 37 deg Flare To M22 x 1.5 Male Metric Thread, 90 deg Elbow

Ask A Question
Alternate Part Numbers
Alternate Part Number C1DB51, Alternate Part Number MI-08750509, Alternate Part Number MINO-00902X78550
C
1.33
Brand
Fluid Routing Solutions, Inc
Brand
Fluid Routing Solutions
Pack Size
1.00
UOM
EA
F
1.70
Supplier Part Number
JM0822-90
Thread 1
3/4-16
Thread 2
M22 x 1.5
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.38 lbs
Product Questions & Answers 1

Product Questions & Answers

Got a machine that's running M22 x 1.5 metric ports but my hydraulic lines are JIC 37 degree flare, this elbow gonna bridge that gap without needing extra adapters stacked together?
Question by: Diane G on Oct 12, 2025, 10:23 AM
That's what this fitting is built for. One end is 3/4-16 male JIC 37 degree flare and the other is M22 x 1.5 male metric thread, so you're making that transition in a single piece. The 90 degree angle also means you're not fighting a straight adapter in a tight spot, you get your directional change right at the connection point. No stacking required.
Answer by: Customer Support on Oct 14, 2025, 6:57 AM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 C F Price Buy Now
9069-12-27 0.75 1-1/16 -12 M27 X 2.0 1.94 1.61
JM0822-90 0.5 3/4-16 M22 x 1.5 1.33 1.7
