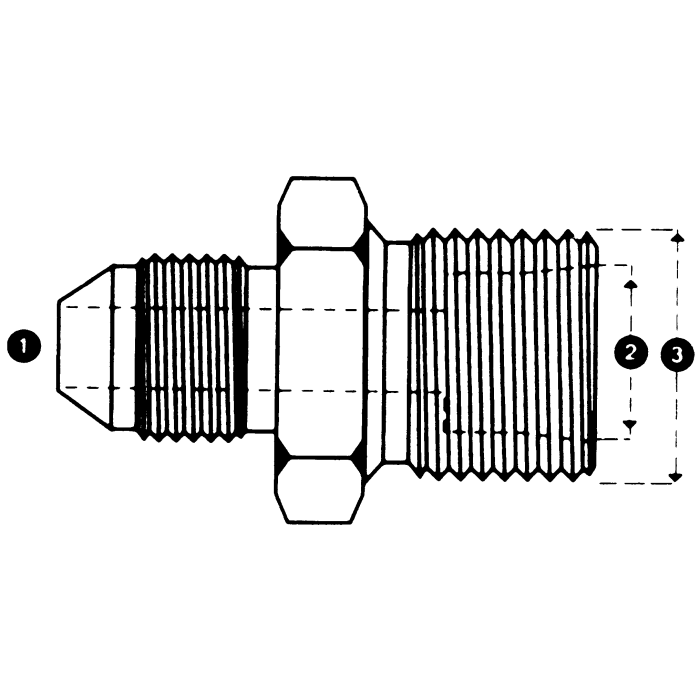

main product photo

Steel Adapter, 1-5/16-12 Male JIC 37 deg Flare To M45 x 1.5 Male Kobelco, Straight

Ask A Question
Alternate Part Numbers
Alternate Part Number C1ZT56, Alternate Part Number MI-02205983, Alternate Part Number MINO-03671X84948
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9247-16-35-45
Thread 1
1-5/16-12
Thread 3
M45 x 1.5
Thread Sealant
No
Tube O.D. 2
35
Product Weight
0.90 lbs
Product Questions & Answers 1

Product Questions & Answers

Got a Kobelco excavator that needs a new fitting where the JIC line ties in, this the right adapter to make that jump from 1-5/16-12 JIC to the M45 x 1.5 Kobelco port?
Question by: Larry E on Jan 31, 2026, 12:47 PM
That's exactly what this one's built for. One end is a 1-5/16-12 Male JIC 37-degree flare, and the other is M45 x 1.5 Male Kobelco thread. It's a straight configuration, so no angle change at the connection point. Adaptall makes these to fit Kobelco and Komatsu hydraulic applications specifically, and the SKU 9247-16-35-45 lines up with their catalog number C1ZT56 for that thread pairing.
Answer by: Customer Support on Feb 1, 2026, 6:14 PM

Similar Products

Model Number Thread 1 Tube O.D. 2 Thread 3 Price Buy Now
9247-12-28-36 1-1/16-12 28 M36 x 1.5
9247-16-35-45 1-5/16-12 35 M45 x 1.5
