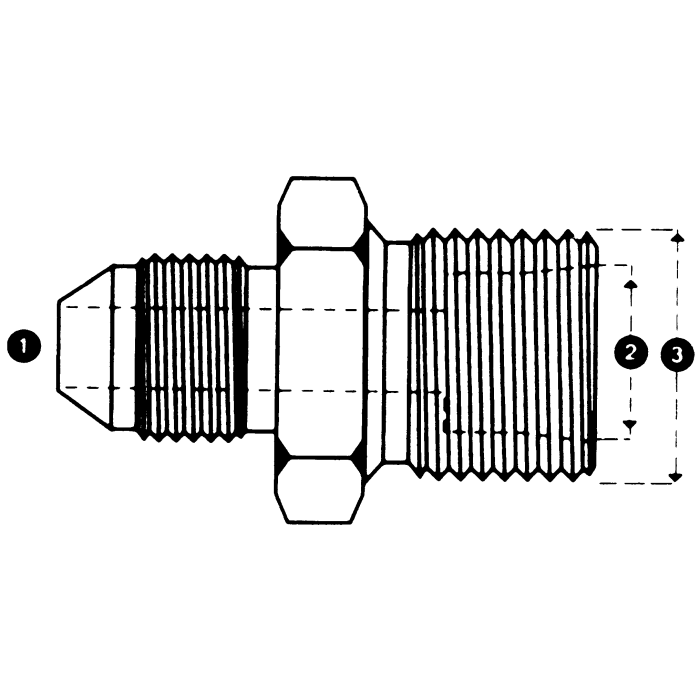

Steel Adapter, 1-1/16-12 Male JIC 37 deg Flare To M36 x 1.5 Male Kobelco, Straight

Alternate Part Numbers Alternate Part Number C1ZT57, Alternate Part Number MI-02116414, Alternate Part Number MINO-03671J02750	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9247-12-28-36	Thread 1 1-1/16-12	Thread 3 M36 x 1.5	Thread Sealant No	Tube O.D. 2 28	Product Weight 0.50 lbs

Product Questions & Answers 1

Product Questions & Answers

got a Kobelco excavator and need to tie into a JIC line off the pump, this adapter, it's going straight male to male on both ends?

Question by: Bonnie R on Feb 18, 2026, 1:56 PM

Correct on both counts. One end is a 1-1/16-12 Male JIC with a 37 degree flare, and the other is M36 x 1.5 Male Kobelco thread. Both ends are male, so you'll be threading into female ports on each side. The straight configuration means no offset or angle, just a clean inline connection between those two thread types.

Answer by: Customer Support on Feb 20, 2026, 6:00 AM

Similar Products

Model Number	Thread 1	Tube O.D. 2	Thread 3	Price	Buy Now
9247-12-28-36	1-1/16-12	28	M36 x 1.5
9247-16-35-45	1-5/16-12	35	M45 x 1.5
