main product photo

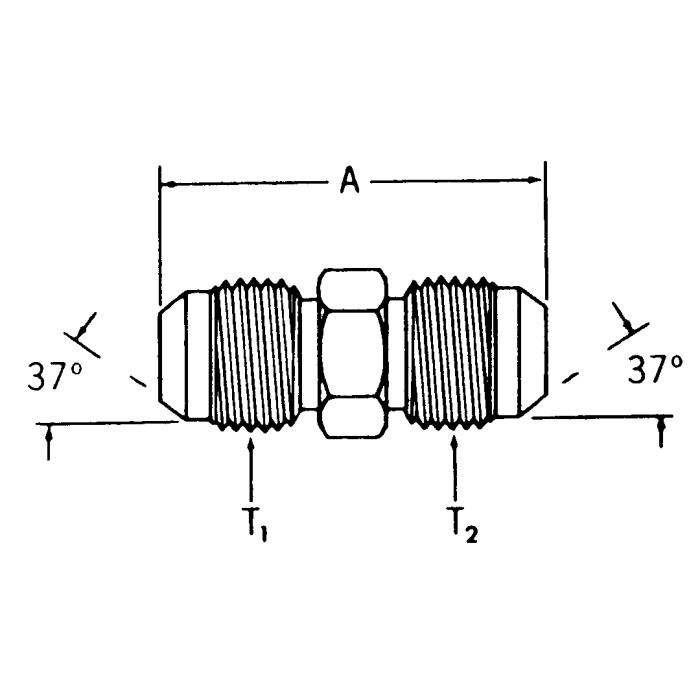

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

Ask A Question
A
1.67
Alternate Part Numbers
Alternate Part Number A2027-10-4S, Alternate Part Number C1BF52, Alternate Part Number MI-02228881, Alternate Part Number MINO-00028X10041
Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
2403-10-04
Thread 1
7/8-14
Thread 2
7/16-20
Thread Sealant
No
Product Weight
0.15 lbs
Product Questions & Answers 3

Product Questions & Answers

So, this thing'll go from a 7/8-14 to a 7/16-20 fitting, right? Just makin' sure before I order.
Question by: Larry H on Dec 17, 2025, 1:22 PM
That's correct. This adapter transitions from a 7/8-14 male JIC 37-degree flare to a 7/16-20 male JIC 37-degree flare.
Answer by: Customer Support on Dec 19, 2025, 7:56 AM
got two JIC lines, one’s a #10 and the other’s a #4. is this the straight piece that’ll join em up?
Question by: Bobby E on Aug 14, 2025, 6:11 PM
Built for tying two different JIC 37 degree flare sizes together, it goes from 7/8-14 male JIC on one side to 7/16-20 male JIC on the other in a straight union.
Answer by: Customer Support on Aug 15, 2025, 9:03 PM
got a #10 JIC fitting on one end and need to step down to a #4 JIC on the other -- will this straight adapter handle that?
Question by: Stan H on Oct 8, 2025, 12:55 PM
That's what this one's built for. One end is 7/8-14 male JIC 37 degree flare, which is your #10 size, and the other end is 7/16-20 male JIC 37 degree flare, your #4 size. Both sides use the same 37 degree flare seating, so the connection stays clean and tight without needing any thread sealant. Straight configuration, no offset, just a direct male-to-male union between those two JIC sizes.
Answer by: Customer Support on Oct 9, 2025, 9:44 PM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Buy Now
2027-12-12S 0.75 1-1/16-12 1-1/16-12 2.16
2027-12-8S 0.38 1-1/16-12 3/4-16 1.95
2027-24-24S 1.5 1-7/8-12 1-7/8-12 2.75
2027-8-6S 0.38 3/4-16 9/16-18 1.52
2027-10-10S 0.63 7/8-14 7/8-14 1.88
2027-10-6S 0.38 7/8-14 9/16-18 1.68
2027-10-8S 0.5 7/8-14 3/4-16 1.78
2027-12-10S 0.61 1-1/16-12 7/8-14 2.05
2027-16-12S 0.75 1-5/16-12 1-1/16-12 2.2
2027-16-16S 1 1-5/16-12 1-5/16-12 2.25
2027-20-16S 1-5/8-12 1-5/16-12
2027-20-20S 1.25 1-5/8-12 1-5/8-12 2.43
2027-3-3S 0.19 3/8-24 3/8-24 1.23
2027-32-32S 2 2-1/2-12 2-1/2-12 3.4
2027-4-4S 0.25 7/16-20 7/16-20 1.37
2027-5-4S 1/2-20 7/16-20 1.37
2027-5-5S 0.31 1/2-20 1/2-20 1.37
2027-6-4S 7/16-20 9/16-18 1.4
2027-6-5S 9/16-18 1/2-20 1.4
2027-6-6S 0.38 9/16-18 9/16-18 1.41
2027-8-4S 3/4-16 7/16-20 1.51
2027-8-8S 0.5 3/4-16 3/4-16 1.62
2403-10-04 7/8-14 7/16-20 1.67
2403-12-06 1-1/16-12 9/16-18 1.87
2403-14-12 1-3/16-12 1-1/16-12 2.18
