main product photo

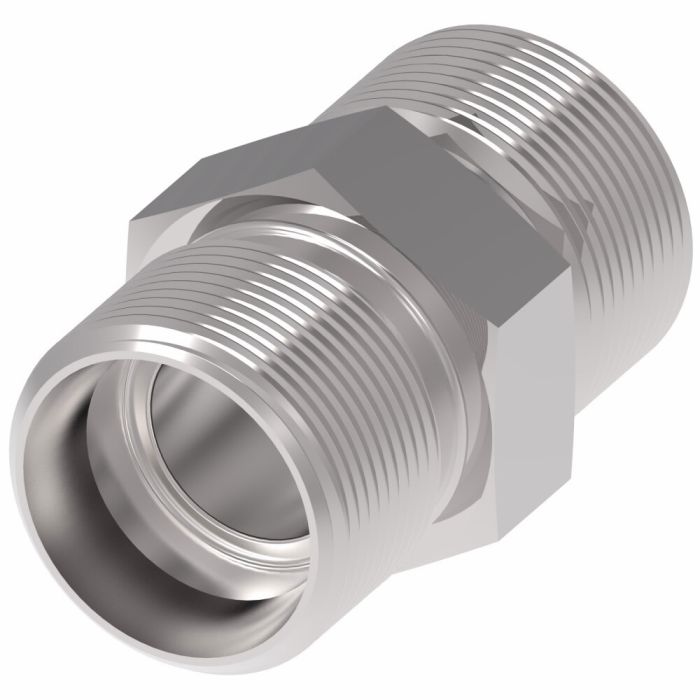

Steel Adapter, 3/4-16 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

Ask A Question
A
1.51
Alternate Part Numbers
Alternate Part Number C1AW78, Alternate Part Number MI-00311669, Alternate Part Number MINO-00015F61164
Application
Other - Hydraulic, instrumentation, and chemical processing systems
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.75
End Size 2
0.44
End Type 1
SAE 37
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2027-8-4S
Thread 1
3/4-16
Thread 2
7/16-20
Thread Sealant
No
Product Weight
0.10 lbs
Product Questions & Answers 3

Product Questions & Answers

Will this adapter work for connecting two JIC flared fittings together?
Question by: Dale C on Jan 3, 2026, 7:51 PM
Yes, this adapter is designed to connect two SAE 37-degree flared fittings. It's a straight union adapter, so both fittings will be in line with each other.
Answer by: Customer Support on Jan 5, 2026, 12:22 PM
got a hose end with 3/4-16 jic, and the other side is 7/16-20 jic. is this the straight union that’ll hook those two together
Question by: Warren M on Dec 22, 2025, 6:45 AM
For tying two JIC 37 degree flare connections together, this adapter is a straight union with a 3/4-16 male JIC 37 degree flare on one end and a 7/16-20 male JIC 37 degree flare on the other.
Answer by: Customer Support on Dec 23, 2025, 7:08 AM
Got a fitting on my hydraulic line that's 3/4-16 JIC and I need to step it down to a 7/16-20 JIC connection. This the right part for that?
Question by: Lance M on Jun 13, 2025, 9:02 PM
That's what this adapter is built for. One end is 3/4-16 male JIC 37 degree flare, the other is 7/16-20 male JIC 37 degree flare, both using the same SAE 37 degree flare seating angle. It's a straight configuration, so there's no angle or offset involved. Both sides thread in male, so you'd need female JIC ports or fittings on whatever you're connecting to on each end.
Answer by: Customer Support on Jun 15, 2025, 6:46 AM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Buy Now
2027-12-12S 0.75 1-1/16-12 1-1/16-12 2.16
2027-12-8S 0.38 1-1/16-12 3/4-16 1.95
2027-24-24S 1.5 1-7/8-12 1-7/8-12 2.75
2027-8-6S 0.38 3/4-16 9/16-18 1.52
2027-10-10S 0.63 7/8-14 7/8-14 1.88
2027-10-6S 0.38 7/8-14 9/16-18 1.68
2027-10-8S 0.5 7/8-14 3/4-16 1.78
2027-12-10S 0.61 1-1/16-12 7/8-14 2.05
2027-16-12S 0.75 1-5/16-12 1-1/16-12 2.2
2027-16-16S 1 1-5/16-12 1-5/16-12 2.25
2027-20-16S 1-5/8-12 1-5/16-12
2027-20-20S 1.25 1-5/8-12 1-5/8-12 2.43
2027-3-3S 0.19 3/8-24 3/8-24 1.23
2027-32-32S 2 2-1/2-12 2-1/2-12 3.4
2027-4-4S 0.25 7/16-20 7/16-20 1.37
2027-5-4S 1/2-20 7/16-20 1.37
2027-5-5S 0.31 1/2-20 1/2-20 1.37
2027-6-4S 7/16-20 9/16-18 1.4
2027-6-5S 9/16-18 1/2-20 1.4
2027-6-6S 0.38 9/16-18 9/16-18 1.41
2027-8-4S 3/4-16 7/16-20 1.51
2027-8-8S 0.5 3/4-16 3/4-16 1.62
2403-10-04 7/8-14 7/16-20 1.67
2403-12-06 1-1/16-12 9/16-18 1.87
2403-14-12 1-3/16-12 1-1/16-12 2.18
