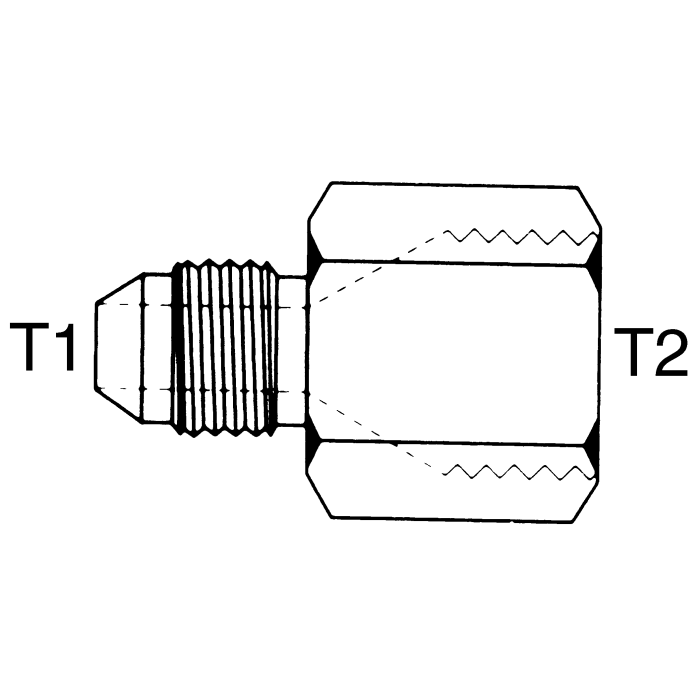

Steel Adapter, 9/16-18 Male JIC 37 deg Flare To 3/8-19 Female JIS 30 deg Flare Seat (BSPP Thread), Straight

Alternate Part Numbers Alternate Part Number C1ZW93, Alternate Part Number MI-02116369, Alternate Part Number MINO-03671J02708	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9220-06-06	Thread 1 9/16-18	Thread 2 3/8-19	Thread Sealant No	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this adapter work to connect a JIC flared fitting to a BSPP threaded port?

Question by: Tommy T on Feb 22, 2026, 6:50 AM

This adapter is designed specifically for that purpose, connecting a 9/16-18 male JIC 37 degree flare to a 3/8-19 female JIS 30 degree flare seat, which is a BSPP thread.

Answer by: Customer Support on Feb 23, 2026, 11:47 AM

got a piece of equipment with a JIS port on it and need to tie into a JIC line -- this straight adapter the right call for that?

Question by: Daryl S on Mar 14, 2026, 1:38 PM

That's what this fitting is built for. One end is a 9/16-18 male JIC with a 37-degree flare, and the other is a 3/8-19 female JIS with a 30-degree flare seat on a BSPP thread. So if you've got a JIC line coming in and a JIS port on your equipment, this adapter bridges that gap in a straight configuration. No thread sealant is needed on this one, which keeps the install clean and straightforward.

Answer by: Customer Support on Mar 16, 2026, 6:51 AM

Similar Products

Model Number	Thread 1	Thread 2
9220-04-04	7/16-20	1/4-19
9220-06-06	9/16-18	3/8-19
9220-08-08	3/4-16	1/2-14
