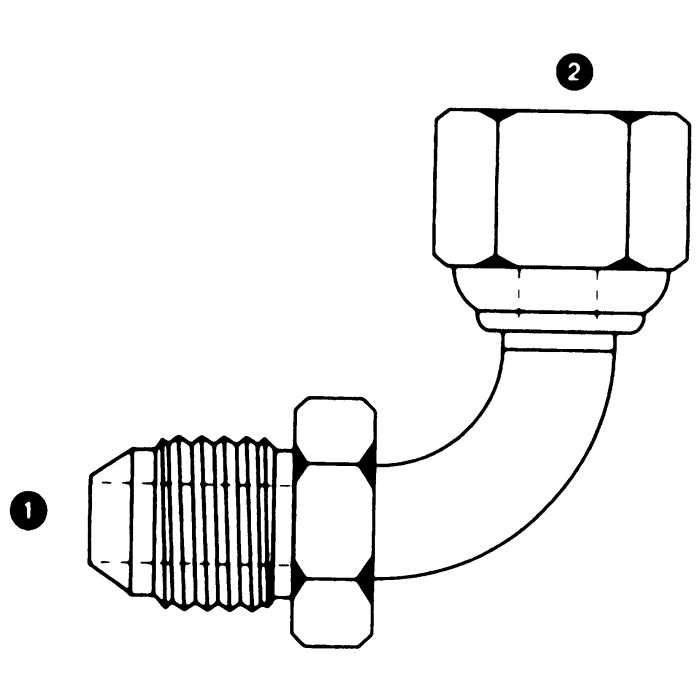

Steel Adapter, 9/16-18 Male JIC 37 deg Flare To 3/8-19 Female BSPP (British Parallel), 90 deg Bent Tube Elbow

Alternate Part Numbers Alternate Part Number C1FD57, Alternate Part Number MI-03231019, Alternate Part Number MINO-03671X86444	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9250-06-06	Thread 1 9/16-18	Thread 2 3/8-19	Thread Sealant No	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a line coming off a hydraulic valve that needs to turn 90 degrees before connecting to some imported equipment with BSPP ports. The other side of my line is JIC. this thing gonna work for that?

Question by: Shane H on Oct 6, 2025, 6:16 PM

Right-angle JIC to BSPP crossovers are exactly what this fitting is built for. One end is a 9/16-18 Male JIC 37-degree flare, the other is a 3/8-19 Female BSPP with a swivel, and the 90-degree elbow handles that direction change without needing a separate elbow fitting in the line. Pretty common setup when you're connecting North American hydraulic hydraulic connections to European or Asian equipment that runs BSPP ports.

Answer by: Customer Support on Oct 8, 2025, 3:59 PM

Will this fitting hold up for connecting hydraulic lines on a log splitter?

Question by: Frank H on Oct 16, 2025, 6:14 PM

Designed for a variety of hydraulic applications, this steel adapter should be suitable. It features a 9/16-18 Male JIC 37 deg Flare connection on one end and a 3/8-19 Female BSPP (British Parallel) connection on the other.

Answer by: Customer Support on Oct 18, 2025, 12:00 PM

Similar Products

Model Number	Thread 1	Thread 2	Price	Buy Now
9250-06-06	9/16-18	3/8-19
9250-04-04	7/16-20	1/4-19
