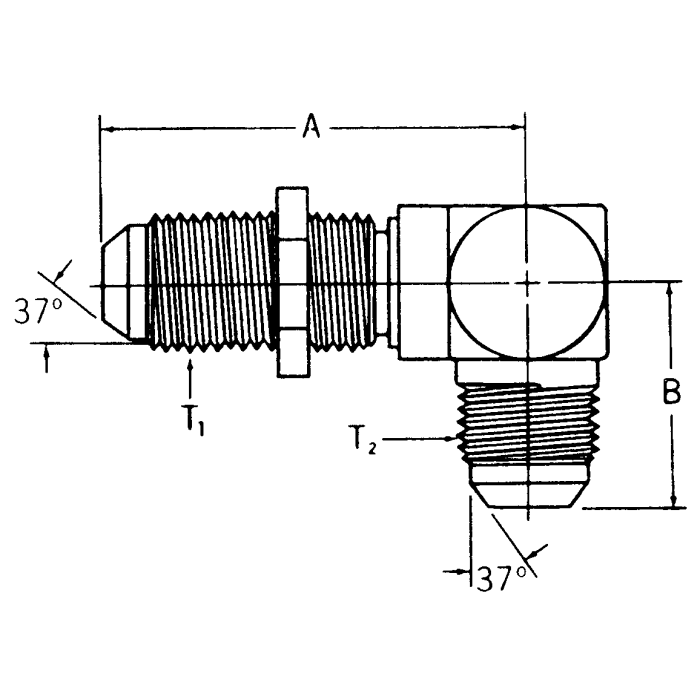

Steel Adapter, 3/8-24 Male JIC 37 deg Flare To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow Bulkhead

A 1.50	Alternate Part Numbers Alternate Part Number C1DW74	B 0.94	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2701-03-03-FG	Thread 1 3/8-24	Thread 2 3/8-24	Thread Sealant No	Tube O.D. 0.19	Product Weight 0.07 lbs

Product Questions & Answers 1

Product Questions & Answers

Both ends are 3/8-24 JIC, so this is basically a same-size fitting on both sides, right? Just want to make sure I ain't missing something before I order.

Question by: Cody T on Jan 3, 2026, 9:10 PM

Correct on both counts. Both threads are 3/8-24 with a 37 degree flare, so you're connecting two identical JIC ends. The 90 degree elbow routes the line perpendicular, and the bulkhead configuration means it's meant to pass through a panel or wall. No reducing, no adapting between different sizes. Straight same-to-same with a directional change built in.

Answer by: Customer Support on Jan 5, 2026, 9:20 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2043-6-6S	0.38	9/16-18	9/16-18	1.81	1.06
2043-10-10S	0.63	7/8-14	7/8-14	2.39	1.46
2043-12-12S	0.75	1-1/16-12	1-1/16-12	2.67	1.72
2043-16-16S	1	1-5/16-12	1-5/16-12	2.8	1.94
2043-4-4S	0.25	7/16-20	7/16-20	1.59	0.92
2043-8-8S	0.5	3/4-16	3/4-16	2.11	1.24
2701-03-03	0.19	3/8-24	3/8-24	1.5	0.94
2701-LN-04-04-FG	0.25	7/16-20	7/16-20	1.59	0.97
