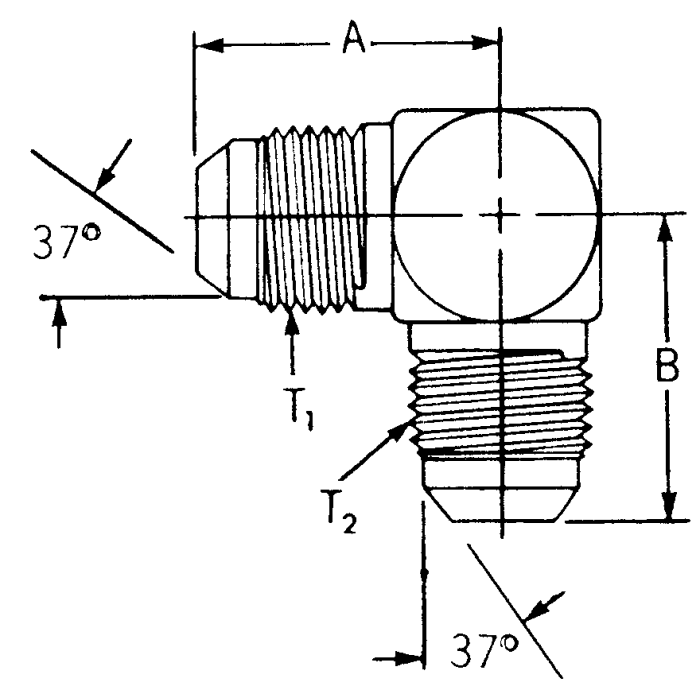

Steel Adapters, Male JIC 37 deg Flare To Male JIC 37 deg Flare, 90 deg Elbow
Products
| Model Number | Tube O.D. | Thread 1 | Thread 2 | A | B | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| 2039-12-12S | 0.75 | 1-1/16-12 | 1-1/16-12 | 1.66 | 1.66 |
|
|
| 2039-10-10S | 0.63 | 7/8-14 | 7/8-14 | 1.45 | 1.45 |
|
|
| 2039-16-16S | 1 | 1-5/16-12 | 1-5/16-12 | 1.81 | 1.81 |
|
|
| 2039-20-20S | 1.25 | 1-5/8-12 | 1-5/8-12 | 2.06 | 2.06 |
|
|
| 2039-4-4S | 0.25 | 7/16-20 | 7/16-20 | 0.89 | 0.89 |
|
|
| 2039-6-6S | 0.38 | 9/16-18 | 9/16-18 | 1.06 | 1.06 |
|
|
| 2039-8-8S | 0.5 | 3/4-16 | 3/4-16 | 1.25 | 1.25 |
|
|
| 2500-03-03 | 0.19 | 3/8-24 | 3/8-24 | 0.83 | 0.83 |
|
