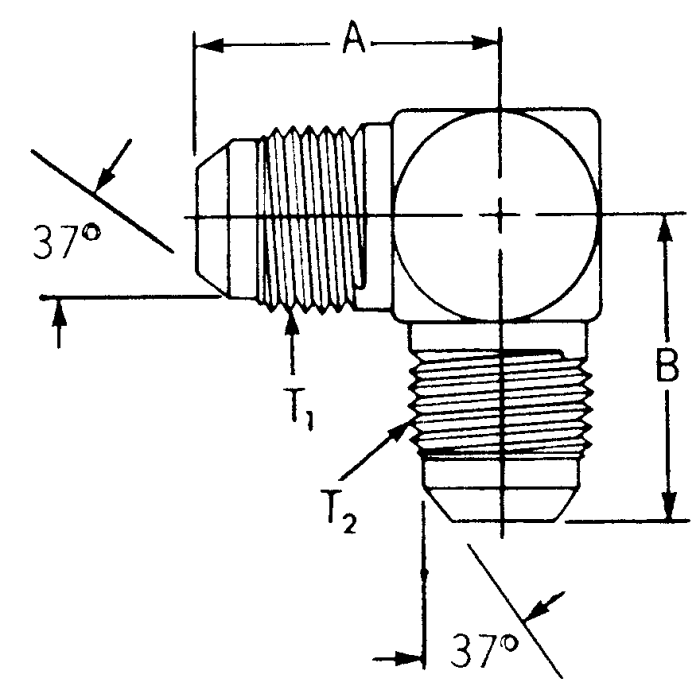

Steel Adapter, 3/8-24 Male JIC 37 deg Flare To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow

A 0.83	Alternate Part Numbers Alternate Part Number A2039-3-3S, Alternate Part Number C1DW11, Alternate Part Number MI-01472334, Alternate Part Number MINO-00028J07301	B 0.83	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2500-03-03-FG	Thread 1 3/8-24	Thread 2 3/8-24	Thread Sealant No	Tube O.D. 0.19	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end with 3/8-24 JIC on it, will this elbow screw right on and still be JIC flare both sides?

Question by: Merle H on Mar 13, 2026, 11:39 AM

Both ends are 3/8-24 male JIC with a 37 degree flare, so it matches up to standard JIC 37 degree flare female connections on each side. It is a 90 degree elbow, so it turns the line while keeping the same JIC flare style end to end.

Answer by: Customer Support on Mar 15, 2026, 8:22 AM

Got a tight routing situation on a hydraulic line and need to make a 90-degree turn without a lot of room to work with. Both ends on this fitting are 3/8-24 male JIC, right?

Question by: Tommy K on Apr 29, 2025, 8:49 AM

both ends are 3/8-24 male JIC 37-degree flare, so you're getting a male-to-male configuration with the 90-degree elbow built right in. That makes it a solid pick when your line needs to change direction but you're working with limited clearance and need the same thread spec on each end. The steel construction holds up well in high-pressure setups, and there's no thread sealant involved, so the seal comes from the 37-degree flare contact itself.

Answer by: Customer Support on Apr 30, 2025, 12:40 PM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2039-12-12S	0.75	1-1/16-12	1-1/16-12	1.66	1.66
2039-10-10S	0.63	7/8-14	7/8-14	1.45	1.45
2039-16-16S	1	1-5/16-12	1-5/16-12	1.81	1.81
2039-20-20S	1.25	1-5/8-12	1-5/8-12	2.06	2.06
2039-4-4S	0.25	7/16-20	7/16-20	0.89	0.89
2039-6-6S	0.38	9/16-18	9/16-18	1.06	1.06
2039-8-8S	0.5	3/4-16	3/4-16	1.25	1.25
2500-03-03	0.19	3/8-24	3/8-24	0.83	0.83
