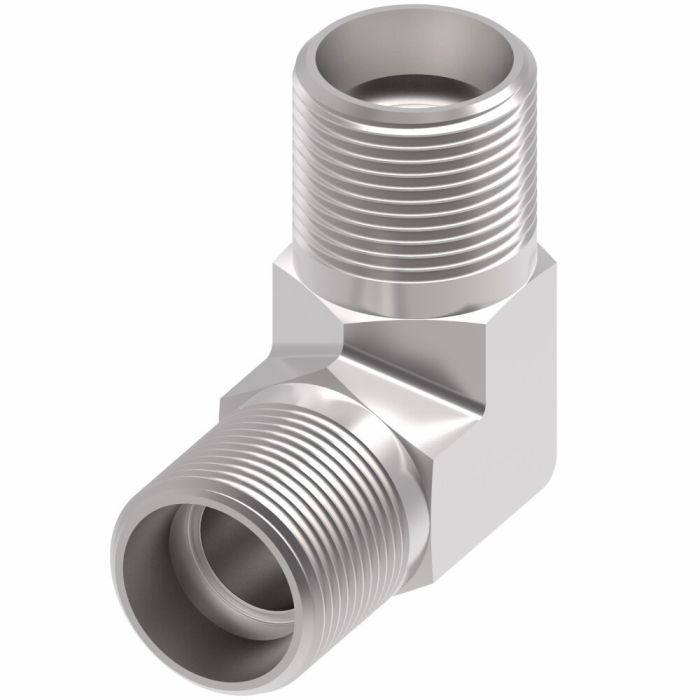

Steel Adapter, 7/16-20 Male JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

A 0.89	Alternate Part Numbers Alternate Part Number C1AY18, Alternate Part Number MI-00313542, Alternate Part Number MINO-00015F62196	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 0.89	Drop Dimension 0.89	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Size 1 0.44	End Size 2 0.44	End Type 1 SAE 37	End Type 2 SAE 37	Minimum Working Temperature -65	Supplier Part Number 2039-4-4S	Thread 1 7/16-20	Thread 2 7/16-20	Thread Sealant No	Tube O.D. 0.25	Tube O.D. 0.25	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot on a line, is this the kind of 90 elbow that keeps both ends JIC flare

Question by: Dean H on Nov 26, 2025, 9:33 AM

Youre looking at a 90 degree elbow adapter with a 7/16-20 male JIC 37 degree flare on both ends. It is meant to turn the line while staying JIC flare to JIC flare.

Answer by: Customer Support on Nov 28, 2025, 7:27 AM

Will this elbow adapter work for connecting two 7/16-20 male JIC 37 degree flare fittings at a 90-degree angle?

Question by: Steve P on Sep 2, 2025, 6:44 PM

Yes, this Eaton Aeroquip 2039 series adapter is specifically designed for that purpose, connecting two SAE 37-degree flare fittings of that size with a 90-degree turn.

Answer by: Customer Support on Sep 4, 2025, 6:58 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2039-12-12S	0.75	1-1/16-12	1-1/16-12	1.66	1.66
2039-10-10S	0.63	7/8-14	7/8-14	1.45	1.45
2039-16-16S	1	1-5/16-12	1-5/16-12	1.81	1.81
2039-20-20S	1.25	1-5/8-12	1-5/8-12	2.06	2.06
2039-4-4S	0.25	7/16-20	7/16-20	0.89	0.89
2039-6-6S	0.38	9/16-18	9/16-18	1.06	1.06
2039-8-8S	0.5	3/4-16	3/4-16	1.25	1.25
2500-03-03	0.19	3/8-24	3/8-24	0.83	0.83
