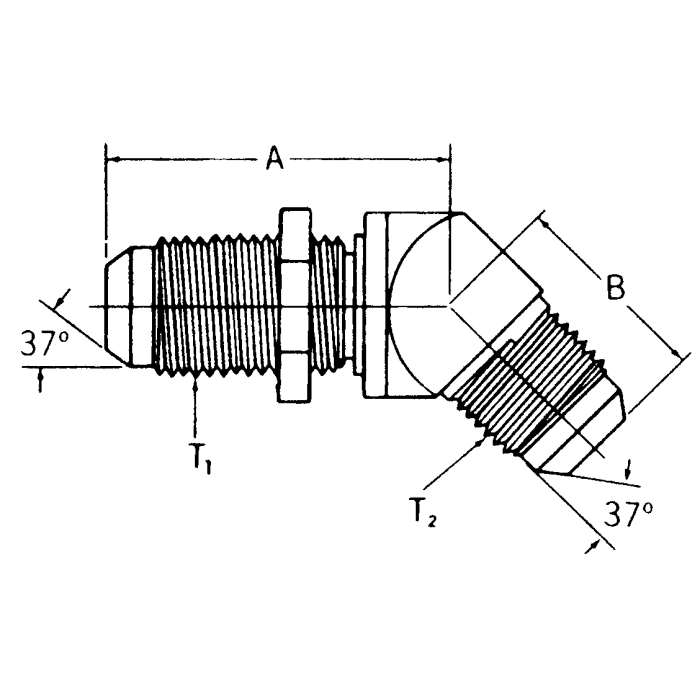

Steel Adapters, Male JIC 37 deg Flare To Male JIC 37 deg Flare, 45 deg Elbow Bulkhead
Products
| Model Number | Tube O.D. | Thread 1 | Thread 2 | A | B | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| 2042-6-6S | 0.38 | 9/16-18 | 9/16-18 | 1.64 | 0.83 |
|
|
| 2042-12-12S | 0.75 | 1-1/16-12 | 1-1/16-12 | 2.36 | 1.41 |
|
|
| 2042-16-16S | 1 | 1-5/16-12 | 1-5/16-12 | 2.58 | 1.47 |
|
|
| 2042-4-4S | 0.25 | 7/16-20 | 7/16-20 | 1.55 | 0.73 |
|
|
| 2042-8-8S | 0.5 | 3/4-16 | 3/4-16 | 2.08 | 0.98 |
|
|
| 2702-LN-04-04-FG | 0.25 | 7/16-20 | 7/16-20 | 1.53 | 0.72 |
|
