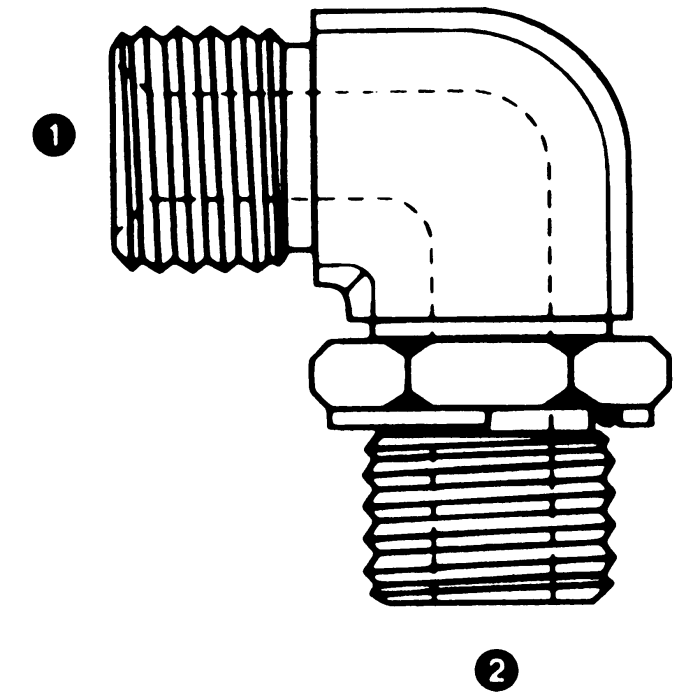

Steel Adapter, 1/2-14 Male BSPP (British Parallel) To 1/2-14 Adjustable Male BSPP (British Parallel), 90 deg Elbow

Alternate Part Numbers Alternate Part Number 621-1724, Alternate Part Number C1FA88, Alternate Part Number MI-02116264, Alternate Part Number MINO-03671J02606	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Includes None	Supplier Part Number 9052-08-08	Thread 1 1/2-14	Thread 2 1/2-14	Thread Sealant No	Product Weight 0.35 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up okay in a hydraulic system running around 2000 psi?

Question by: Neil P on Dec 1, 2025, 8:45 PM

Designed for robustness in demanding environments, this Adaptall America adapter is built to handle high-pressure scenarios where BSPP fittings are required. It should maintain its integrity even under those conditions.

Answer by: Customer Support on Dec 3, 2025, 4:43 PM

got a tight spot on a line, is this the kind of elbow that lets you clock it where you need it?

Question by: Glen R on Jun 16, 2025, 6:06 AM

With the adjustable male BSPP end, you can align the 90 degree elbow to the direction you need before tightening it down, which helps a lot when the hose or tube run is crowded.

Answer by: Customer Support on Jun 17, 2025, 7:04 PM

got a line running at a right angle and need to tie into it with BSPP fittings on both ends, will this adapter work for that kind of setup?

Question by: Gary A on Dec 4, 2025, 2:10 PM

For a 90-degree direction change between two BSPP connections, this is exactly the piece you'd reach for. Both threads are 1/2-14 BSPP, so as long as your line and your mating port are both that size, it drops right in. The adjustable end on one side also gives you some room to rotate and align things once you're threading it up, which helps a lot when you're working in a tight spot or trying to avoid stress on the hose.

Answer by: Customer Support on Dec 6, 2025, 1:12 PM

Similar Products

Model Number	Thread 1	Thread 2	Includes
9052-04-04	1/4-19	1/4-19	None
9052-06-06	3/8-19	3/8-19	None
9052-08-08	1/2-14	1/2-14	None
