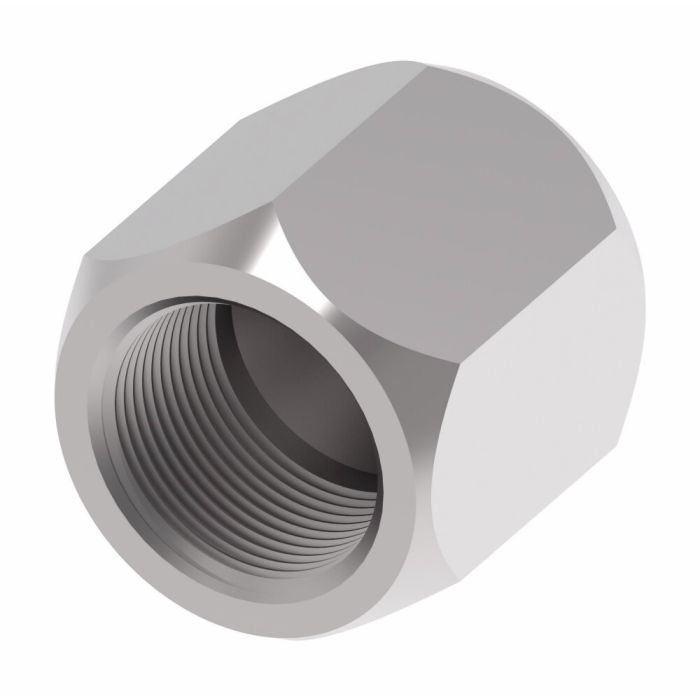

Steel JIC 37 deg Flare Cap, 3/4-16 Thread

A 0.75	Alternate Part Numbers Alternate Part Number 20011560, Alternate Part Number C1BB95, Alternate Part Number MI-00317063, Alternate Part Number MINO-00015F64516	B 0.88	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 0.50	End Type 1 SAE 37	Minimum Working Temperature -40	Supplier Part Number 210292-8S	Thread 2 3/4-16	Thread Sealant No	Tube O.D. 0.50	Tube O.D. 0.5	Product Weight 0.07 lbs

Product Questions & Answers 3

Product Questions & Answers

got a 1/2 inch tube line, is this the right cap for it?

Question by: Dwayne T on Jun 12, 2025, 11:45 AM

For a 1/2 inch tube outside diameter, this cap matches that size and uses an SAE 37 degree (JIC) flare style connection with a 3/4-16 female thread.

Answer by: Customer Support on Jun 14, 2025, 6:41 AM

Will this cap nut fit a standard JIC 37 degree flare fitting?

Question by: Connie H on Oct 6, 2025, 10:29 AM

This cap is designed to fit a 3/4-16 threaded JIC 37-degree flare fitting.

Answer by: Customer Support on Oct 8, 2025, 6:10 AM

got a 3/4-16 jic flare port i need to cap off, is this the right thread for that?

Question by: Debbie M on Oct 11, 2025, 6:41 AM

The key callout on this part is the 3/4-16 JIC 37 degree flare thread. If what you are capping is a JIC 37 degree flare connection with 3/4-16 threads, this cap is the matching style.

Answer by: Customer Support on Oct 12, 2025, 4:37 PM

Similar Products

Model Number	Tube O.D.	Thread 2	A	B
210292-10S	0.63	7/8-14	0.84	1
210292-12S	0.75	1-1/16-12	0.91	1.25
210292-16S	1	1-5/16-12	1.02	1.5
210292-20S	1.25	1-5/8-12	1.06	2
210292-4S	0.25	7/16-20	0.59	0.56
210292-6S	0.38	9/16-18	0.62	0.69
210292-8S	0.5	3/4-16	0.75	0.88
0304-C-02	0.13	5/16-24	0.5	0.38
0304-C-14	0.88	1-3/16-12	0.97	1.38
210292-24S	1.5	1-7/8-12	1.19	2.25
210292-32S	2	2-1/2-12	1.44	2.88
210292-3S	0.19	3/8-24	0.56	0.44
210292-5S	0.31	1/2-20	0.61	0.62
