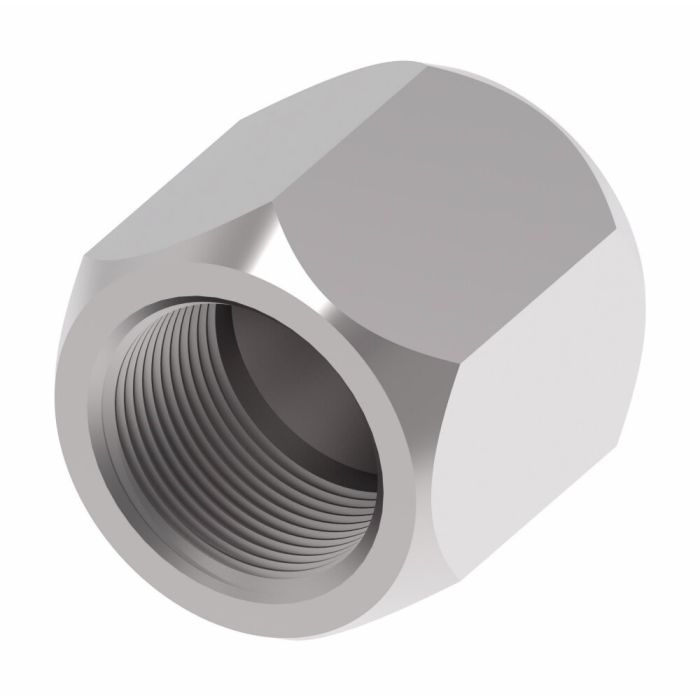

Steel JIC 37 deg Flare Cap, 7/8-14 Thread

A 0.84	Alternate Part Numbers Alternate Part Number 20011561, Alternate Part Number C1BB86, Alternate Part Number MI-00317074, Alternate Part Number MINO-00015F64517	B 1	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 0.63	End Type 1 SAE 37	Minimum Working Temperature -40	Supplier Part Number 210292-10S	Thread 2 7/8-14	Thread Sealant No	Tube O.D. 0.63	Tube O.D. 0.63	Product Weight 0.08 lbs

Product Questions & Answers 2

Product Questions & Answers

got a 7/8-14 jic flare line, is this the right cap for it?

Question by: Rick W on Apr 8, 2025, 2:43 PM

With a 7/8-14 thread and an SAE 37 degree (JIC) female flare end, it’s meant to cap off a matching 37 degree male flare fitting that uses 7/8-14 threads.

Answer by: Customer Support on Apr 10, 2025, 6:12 AM

what thread size is on this cap, and is it the standard JIC flare angle?

Question by: Harold H on Jul 19, 2025, 6:20 AM

The thread is 7/8-14, and yes, it's ground on a 37-degree flare seat, which is the standard JIC configuration. So if you've got a JIC female fitting that needs to be blanked off or protected, this one's going to match up right.

Answer by: Customer Support on Jul 20, 2025, 12:32 PM

Similar Products

Model Number	Tube O.D.	Thread 2	A	B
210292-10S	0.63	7/8-14	0.84	1
210292-12S	0.75	1-1/16-12	0.91	1.25
210292-16S	1	1-5/16-12	1.02	1.5
210292-20S	1.25	1-5/8-12	1.06	2
210292-4S	0.25	7/16-20	0.59	0.56
210292-6S	0.38	9/16-18	0.62	0.69
210292-8S	0.5	3/4-16	0.75	0.88
0304-C-02	0.13	5/16-24	0.5	0.38
0304-C-14	0.88	1-3/16-12	0.97	1.38
210292-24S	1.5	1-7/8-12	1.19	2.25
210292-32S	2	2-1/2-12	1.44	2.88
210292-3S	0.19	3/8-24	0.56	0.44
210292-5S	0.31	1/2-20	0.61	0.62
