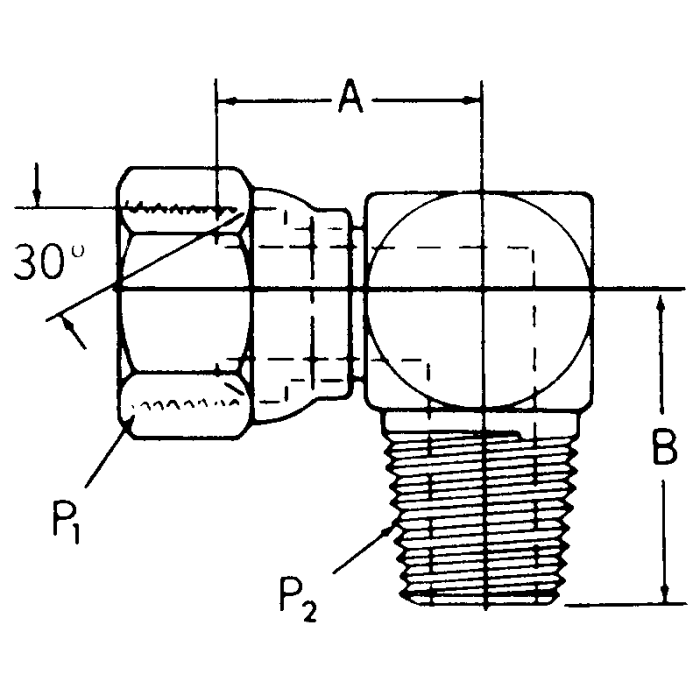

Steel Adapter, 3/8-18 Female NPT Swivel To 3/4-14 Male NPT, 90 deg Elbow

A 1.02	Alternate Part Numbers Alternate Part Number A2047-6-12S, Alternate Part Number C1DU86	B 2	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1501-12-06-FG	Thread 1 3/8-18	Thread 2 3/4-14	Thread Sealant No	Product Weight 0.46 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here fitting work to make a 90 degree turn between two pipes with different sized threads?

Question by: Dwight F on Oct 15, 2025, 9:04 AM

This steel adapter is designed to connect a 3/8-18 female NPT swivel fitting to a 3/4-14 male NPT fitting at a 90-degree angle.

Answer by: Customer Support on Oct 17, 2025, 7:05 AM

fitting's got a 3/4 male end on one side and a 3/8 female swivel on the other, right? just want to make sure before I go putting it in the wrong spot

Question by: Terry M on Jan 5, 2026, 9:21 PM

Correct on both counts. The male end threads are 3/4-14 NPT, and the female swivel end runs 3/8-18 NPT. The 90 degree angle between them makes it useful when you need to redirect a line in a tight spot without fighting a straight adapter into position.

Answer by: Customer Support on Jan 7, 2026, 3:27 PM

trying to swap out a bent elbow on my line. is this the one that’s 3/8-18 female swivel on one side and 3/4-14 male npt on the other?

Question by: Dwayne H on Apr 11, 2025, 8:58 PM

Match the threads and you’re in the right neighborhood. One end is a 3/8-18 female NPT swivel, and the other end is a 3/4-14 male NPT, built as a 90 degree elbow.

Answer by: Customer Support on Apr 13, 2025, 6:58 PM

Similar Products

Model Number	Thread 1	Thread 2	A	B
2047-4-4S	1/4-18	1/4-18	0.78	1.19
2047-6-8S	3/8-18	1/2-14	1	1.81
2047-8-12S	1/2-14	3/4-14	1.12	2
2047-8-6S	1/2-14	3/8-18	1	1.67
1501-12-06	3/8-18	3/4-14	1.02	2
2047-12-12S	3/4-14	3/4-14	1.19	2
2047-12-16S	3/4-14	1-11-1/2	1.28	2.38
2047-12-8S	3/4-14	1/2-14	1.1	1.81
2047-16-16S	1-11-1/2	1-11-1/2	1.44	2.38
2047-2-2S	1/8-27	1/8-27	0.69	0.94
2047-20-20S	1-1/4-11-1/2	1-1/4-11-1/2	1.62	2.62
2047-4-6S	1/4-18	3/8-18	0.84	1.5
2047-6-6S	3/8-18	3/8-18	0.94	1.5
2047-8-8S	1/2-14	1/2-14	1	1.81
