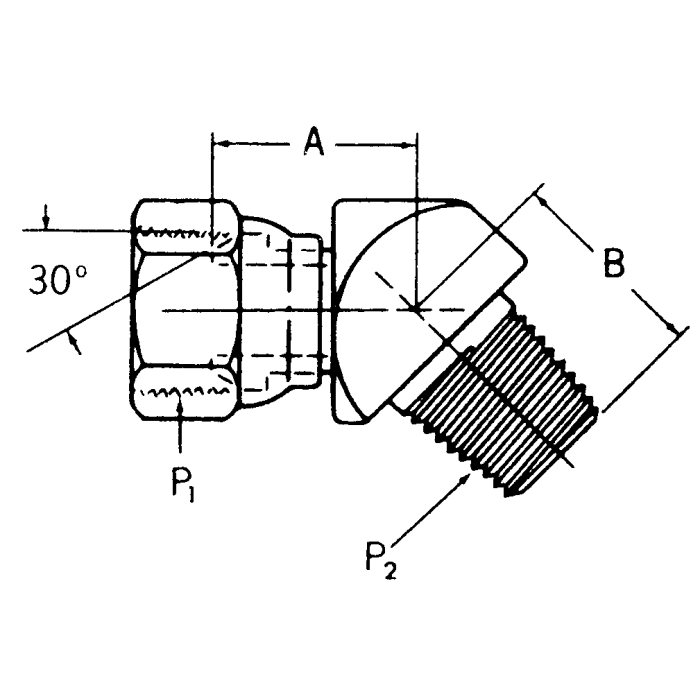

Steel Adapter, 1-1/4-11-1/2 Female NPT Swivel To 1-11-1/2 Male NPT, 45 deg Elbow

A 1.07	B 1.75	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1503-16-20-FG	Thread 1 1-1/4-11-1/2	Thread 2 1-11-1/2	Thread Sealant No	Product Weight 1.01 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this here fitting work for hooking up a hydraulic line at a 45-degree angle?

Question by: Travis S on Oct 23, 2025, 5:28 PM

Yes, this steel adapter features a 45-degree elbow design, making it suitable for changing the direction of flow in your hydraulic system. It's built to provide a reliable connection in those setups.

Answer by: Customer Support on Oct 24, 2025, 9:53 PM

Similar Products

Model Number	Thread 1	Thread 2	A	B
2049-12-12S	3/4-14	3/4-14	1	1.09
2049-16-16S	1-11-1/2	1-11-1/2	1.06	1.5
2049-20-20S	1-1/4-11-1/2	1-1/4-11-1/2	1.25	1.75
2049-4-4S	1/4-18	1/4-18	0.69	0.81
2049-6-6S	3/8-18	3/8-18	0.75	1.06
2049-6-8S	3/8-18	1/2-14	0.92	1.41
2049-8-8S	1/2-14	1/2-14	0.88	1.31
1503-16-20	1-1/4-11-1/2	1-11-1/2	1.07	1.75
