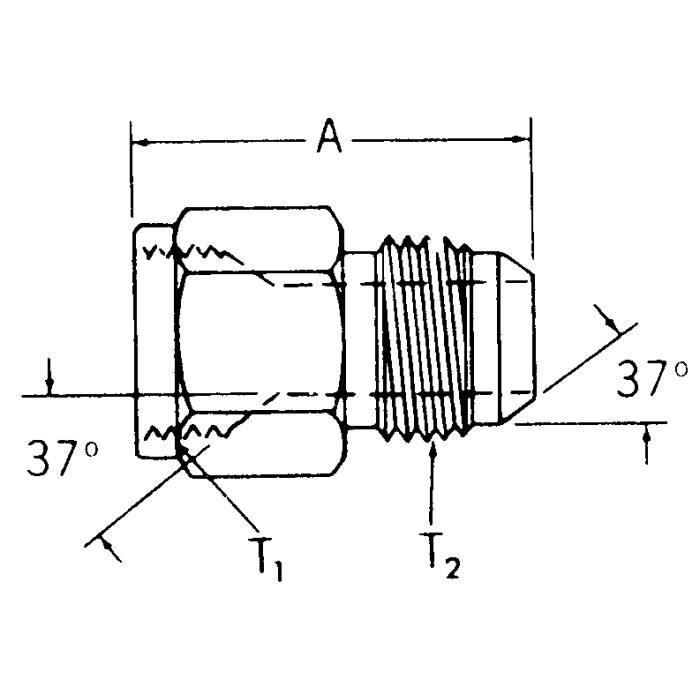

Steel Adapter, 7/8-14 Female JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

A 1.47	Alternate Part Numbers Alternate Part Number 221501-10-4S, Alternate Part Number A221501-10-4S, Alternate Part Number C1DV87, Alternate Part Number MI-00315799, Alternate Part Number MINO-00028F63934	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2406-10-04	Thread 1 7/8-14	Thread 2 7/16-20	Thread Sealant No	Tube O.D. 0.25	Product Weight 0.13 lbs

Product Questions & Answers 2

Product Questions & Answers

i’ve got a hose end that’s 7/8-14 female JIC, will this step it down to a 7/16-20 male JIC?

Question by: Johnny C on May 30, 2025, 3:06 PM

For a straight reducer, it connects a 7/8-14 female JIC 37 degree flare on one side to a 7/16-20 male JIC 37 degree flare on the other, so it is meant to step from a #10 female JIC to a #4 male JIC.

Answer by: Customer Support on May 31, 2025, 3:10 PM

got a #10 female JIC line and need to step it down to a #4 male JIC fitting, this the right adapter for that?

Question by: Daryl W on May 19, 2025, 7:28 PM

That's what this one does. One end is 7/8-14 female JIC with a 37 degree flare, the other is 7/16-20 male JIC with the same 37 degree flare angle. It's a straight reducer, so it'll make that size transition in a single fitting without any extra pieces in between.

Answer by: Customer Support on May 21, 2025, 8:01 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2406-04-06	0.38	7/16-20	9/16-18	1.01
2406-06-08	0.5	9/16-18	3/4-16	1.28
2406-08-10	0.63	3/4-16	7/8-14	1.29
2406-10-04	0.25	7/8-14	7/16-20	1.47
2215-10-12S	0.75	7/8-14	1-1/16-12	1.74
2215-10-8S	0.5	7/8-14	3/4-16	1.53
2215-12-10S	0.63	1-1/16-12	7/8-14	1.73
2215-12-16S	1	1-1/16-12	1-5/16-12	2
2215-16-20S	1.25	1-5/16-12	1-5/8-12	2.3
2406-04-03	0.25	7/16-20	3/8-24	1.05
2406-05-04	0.25	1/2-20	7/16-20	1.16
2406-05-06	0.38	1/2-20	9/16-18	1.17
2406-08-06	0.5	3/4-16	9/16-18	1.31
2406-12-04	0.25	1-1/16-12	7/16-20	1.5
2406-14-12	0.75	1-3/16-12	1-1/16-12	1.8
2406-20-12	0.75	1-5/8-12	1-1/16-12	2
2406-20-24	1.25	1-5/8-12	1-7/8-12	2.16
