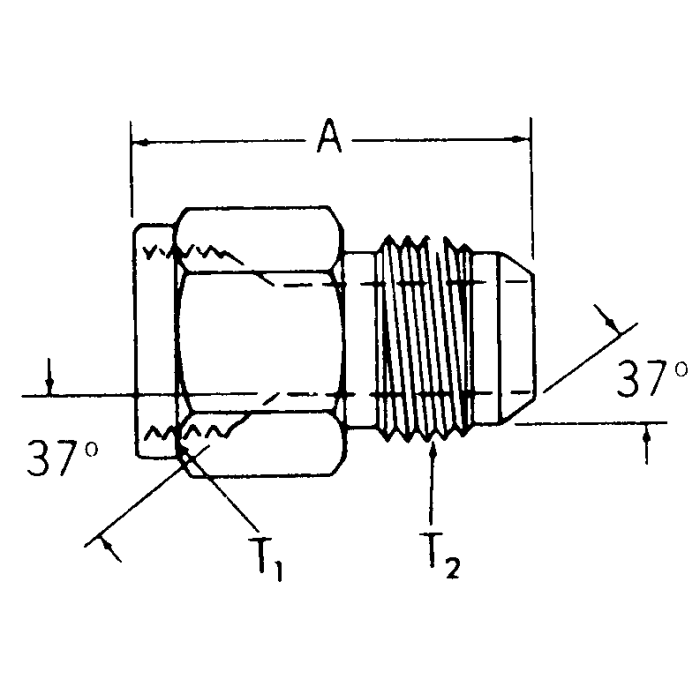

Steel Adapter, 3/4-16 Female JIC 37 deg Flare To 7/8-14 Male JIC 37 deg Flare, Straight

Ask A Question
A
1.29
Alternate Part Numbers
Alternate Part Number 8-10 TETX-S, Alternate Part Number A2215-8-10S, Alternate Part Number C1FE70, Alternate Part Number MI-00472982, Alternate Part Number MINO-00028I31529
Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
2406-08-10
Thread 1
3/4-16
Thread 2
7/8-14
Thread Sealant
No
Tube O.D.
0.63
Product Weight
0.14 lbs
Product Questions & Answers 4

Product Questions & Answers

trying to hook a #8 female JIC line up to a #10 male JIC port, is this the right straight adapter?
Question by: Shawn Y on Jul 13, 2025, 6:37 AM
For that mix, yes. It’s a straight 37° JIC flare union adapter with a 3/4-16 female JIC on one side and a 7/8-14 male JIC on the other.
Answer by: Customer Support on Jul 14, 2025, 8:38 AM
got a hose end that’s 3/4-16 female JIC, will this adapter let me step up to a 7/8-14 male JIC on the other side?
Question by: Harold C on Sep 8, 2025, 9:50 PM
For hooking two JIC 37 degree flare connections together, this part bridges a 3/4-16 female JIC flare on one end to a 7/8-14 male JIC flare on the other, in a straight adapter.
Answer by: Customer Support on Sep 10, 2025, 5:29 PM
Wondering if this adapter'll fit right with my existing JIC fittings?
Question by: Rex E on Dec 19, 2025, 11:34 AM
This steel adapter is designed for direct compatibility with JIC fittings, featuring a 3/4-16 Female JIC 37 degree flare on one side and a 7/8-14 Male JIC 37 degree flare on the other.
Answer by: Customer Support on Dec 21, 2025, 6:19 AM
got a 3/4-16 female JIC end on my hydraulic line and need to step up to a 7/8-14 male JIC connection. this the right adapter for that?
Question by: Troy S on Nov 10, 2025, 3:30 PM
That's what this one's built for. The female end threads onto a 3/4-16 JIC fitting and the male end connects to a 7/8-14 JIC port, both running that standard 37-degree flare seat. No thread sealant needed either, so you're not adding extra steps to the job. Both sides seal on the flare itself, which is how JIC fittings are supposed to work.
Answer by: Customer Support on Nov 12, 2025, 8:56 AM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Buy Now
2406-04-06 0.38 7/16-20 9/16-18 1.01
2406-06-08 0.5 9/16-18 3/4-16 1.28
2406-08-10 0.63 3/4-16 7/8-14 1.29
2406-10-04 0.25 7/8-14 7/16-20 1.47
2215-10-12S 0.75 7/8-14 1-1/16-12 1.74
2215-10-8S 0.5 7/8-14 3/4-16 1.53
2215-12-10S 0.63 1-1/16-12 7/8-14 1.73
2215-12-16S 1 1-1/16-12 1-5/16-12 2
2215-16-20S 1.25 1-5/16-12 1-5/8-12 2.3
2406-04-03 0.25 7/16-20 3/8-24 1.05
2406-05-04 0.25 1/2-20 7/16-20 1.16
2406-05-06 0.38 1/2-20 9/16-18 1.17
2406-08-06 0.5 3/4-16 9/16-18 1.31
2406-12-04 0.25 1-1/16-12 7/16-20 1.5
2406-14-12 0.75 1-3/16-12 1-1/16-12 1.8
2406-20-12 0.75 1-5/8-12 1-1/16-12 2
2406-20-24 1.25 1-5/8-12 1-7/8-12 2.16
