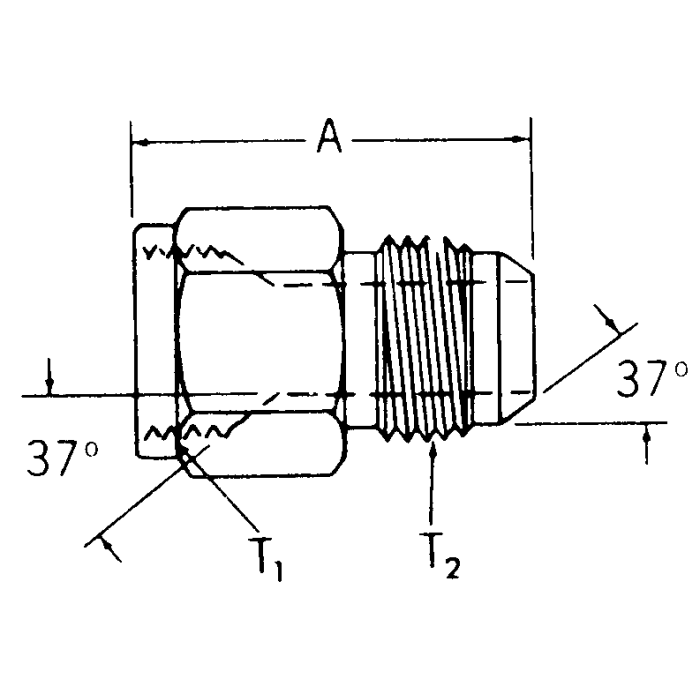

Steel Adapter, 3/4-16 Female JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight

A 1.31	Alternate Part Numbers Alternate Part Number A221501-8-6S, Alternate Part Number C1KJ61, Alternate Part Number MI-00315793, Alternate Part Number MINO-00028F63933	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2406-08-06	Thread 1 3/4-16	Thread 2 9/16-18	Thread Sealant No	Tube O.D. 0.50	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a #8 female JIC line that needs to step down to a #6 male JIC connection, this the right piece for that?

Question by: Hubert J on Oct 16, 2025, 8:21 PM

That's what this adapter is built for. One end is a 3/4-16 female JIC 37 degree flare, the other is a 9/16-18 male JIC 37 degree flare, both running the same flare angle so the seats mate up clean. It's a straight configuration, so no offset or angle to account for during installation.

Answer by: Customer Support on Oct 18, 2025, 3:26 PM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2406-04-06	0.38	7/16-20	9/16-18	1.01
2406-06-08	0.5	9/16-18	3/4-16	1.28
2406-08-10	0.63	3/4-16	7/8-14	1.29
2406-10-04	0.25	7/8-14	7/16-20	1.47
2215-10-12S	0.75	7/8-14	1-1/16-12	1.74
2215-10-8S	0.5	7/8-14	3/4-16	1.53
2215-12-10S	0.63	1-1/16-12	7/8-14	1.73
2215-12-16S	1	1-1/16-12	1-5/16-12	2
2215-16-20S	1.25	1-5/16-12	1-5/8-12	2.3
2406-04-03	0.25	7/16-20	3/8-24	1.05
2406-05-04	0.25	1/2-20	7/16-20	1.16
2406-05-06	0.38	1/2-20	9/16-18	1.17
2406-08-06	0.5	3/4-16	9/16-18	1.31
2406-12-04	0.25	1-1/16-12	7/16-20	1.5
2406-14-12	0.75	1-3/16-12	1-1/16-12	1.8
2406-20-12	0.75	1-5/8-12	1-1/16-12	2
2406-20-24	1.25	1-5/8-12	1-7/8-12	2.16
