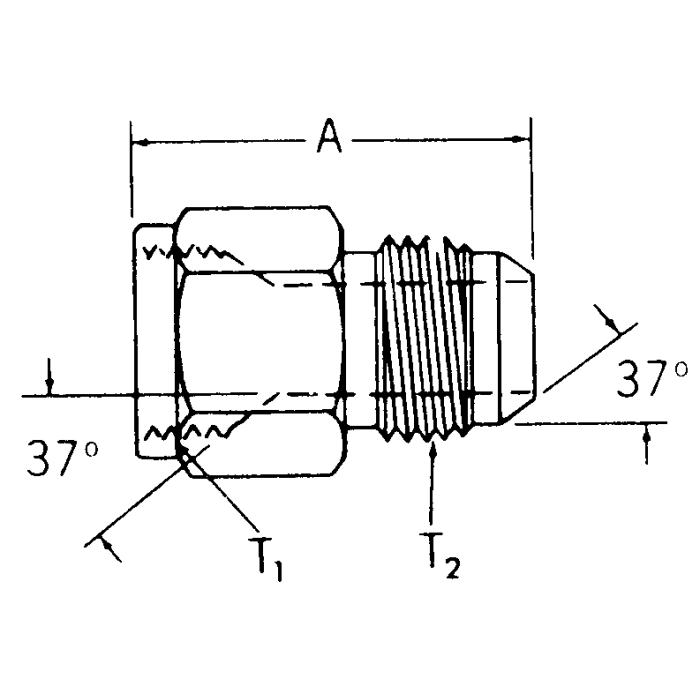

Steel Adapter, 1/2-20 Female JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight

A 1.17	Alternate Part Numbers Alternate Part Number C1FA61, Alternate Part Number MI-02482677, Alternate Part Number MINO-00028J90409	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2406-05-06	Thread 1 1/2-20	Thread 2 9/16-18	Thread Sealant No	Tube O.D. 0.38	Product Weight 0.06 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 1/2-20 female JIC, will this mate up and give me a 9/16-18 male JIC on the other side?

Question by: Bonnie M on Dec 19, 2025, 7:44 AM

For a straight JIC 37 degree flare connection, it converts from 1/2-20 female JIC on one end to 9/16-18 male JIC on the other. It’s a female to male JIC flare adapter, so it’s meant for exactly that kind of size step.

Answer by: Customer Support on Dec 21, 2025, 6:16 AM

fitting's got a 9/16-18 male end on it, will that thread straight into a standard #6 JIC port without any sealant or tape?

Question by: Ross C on Jan 26, 2026, 9:22 AM

JIC 37 degree flare connections seal on the flare itself, so no thread sealant or tape is needed on either end. The 9/16-18 male threads on this adapter are standard #6 JIC, and the 1/2-20 female end is standard #5 JIC. As long as the mating fittings are also JIC 37 degree flare, you'll get a metal-to-metal seal that holds without any added compounds.

Answer by: Customer Support on Jan 27, 2026, 4:44 PM

Will this here adapter work to connect a half-inch female to a 9/16 male?

Question by: Tony G on Jun 8, 2025, 1:23 PM

Yes, this steel adapter is specifically designed to connect a 1/2-20 female JIC 37 degree flare fitting to a 9/16-18 male JIC 37 degree flare fitting.

Answer by: Customer Support on Jun 9, 2025, 5:59 PM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2406-04-06	0.38	7/16-20	9/16-18	1.01
2406-06-08	0.5	9/16-18	3/4-16	1.28
2406-08-10	0.63	3/4-16	7/8-14	1.29
2406-10-04	0.25	7/8-14	7/16-20	1.47
2215-10-12S	0.75	7/8-14	1-1/16-12	1.74
2215-10-8S	0.5	7/8-14	3/4-16	1.53
2215-12-10S	0.63	1-1/16-12	7/8-14	1.73
2215-12-16S	1	1-1/16-12	1-5/16-12	2
2215-16-20S	1.25	1-5/16-12	1-5/8-12	2.3
2406-04-03	0.25	7/16-20	3/8-24	1.05
2406-05-04	0.25	1/2-20	7/16-20	1.16
2406-05-06	0.38	1/2-20	9/16-18	1.17
2406-08-06	0.5	3/4-16	9/16-18	1.31
2406-12-04	0.25	1-1/16-12	7/16-20	1.5
2406-14-12	0.75	1-3/16-12	1-1/16-12	1.8
2406-20-12	0.75	1-5/8-12	1-1/16-12	2
2406-20-24	1.25	1-5/8-12	1-7/8-12	2.16
