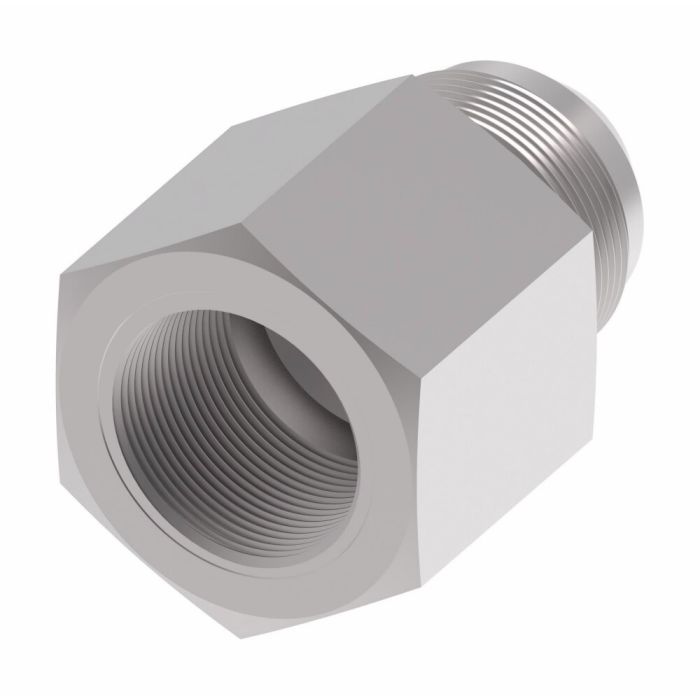

Steel Adapter, 7/8-14 Female JIC 37 deg Flare Swivel To 9/16-18 Male JIC 37 deg Flare, Straight

A 1.03	Alternate Part Numbers Alternate Part Number C1BC61, Alternate Part Number MI-00315803, Alternate Part Number MINO-00015F63935	Application Other	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.63	End Size 2 0.38	End Type 1 SAE 37	End Type 2 SAE 37	Minimum Working Temperature -65	Supplier Part Number 221501-10-6S	Thread 1 7/8-14	Thread 2 9/16-18	Thread Sealant No	Tube I.D. 2 0.30	Tube O.D. 0.38	Tube O.D. 0.38	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a 7/8-14 JIC female swivel to a 9/16-18 JIC male, is this the straight reducer i need?

Question by: Ross W on Aug 25, 2025, 7:09 AM

Use it when you need to step down between two SAE 37 degree JIC flare sizes. One side is a 7/8-14 female JIC 37 degree flare swivel, and the other side is a 9/16-18 male JIC 37 degree flare, in a straight adapter body.

Answer by: Customer Support on Aug 26, 2025, 10:04 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
221501-12-6S	0.38	1-1/16-12	9/16-18	1.09
221501-12-8S	0.5	1-1/16-12	3/4-16	1.19
221501-16-12S	0.75	1-5/16-12	1-1/16-12	1.47
221501-16-6S	0.38	1-5/16-12	9/16-18	1.16
221501-20-16S	1	1-5/8-12	1-5/16-12	1.52
221501-8-6S	0.38	3/4-16	9/16-18	1
221501-10-6S	0.38	7/8-14	9/16-18	1.03
221501-16-10S	0.63	1-5/16-12	7/8-14	1.36
221501-16-8S	0.5	1-5/16-12	3/4-16	1.26
221501-6-4S	0.25	9/16-18	7/16-20	0.97
221501-8-4S	0.25	3/4-16	7/16-20	1
6504-0606	0.38	9/16-18	9/16-18	1.59
6504-1010	0.63	7/8-14	7/8-14	2.17
