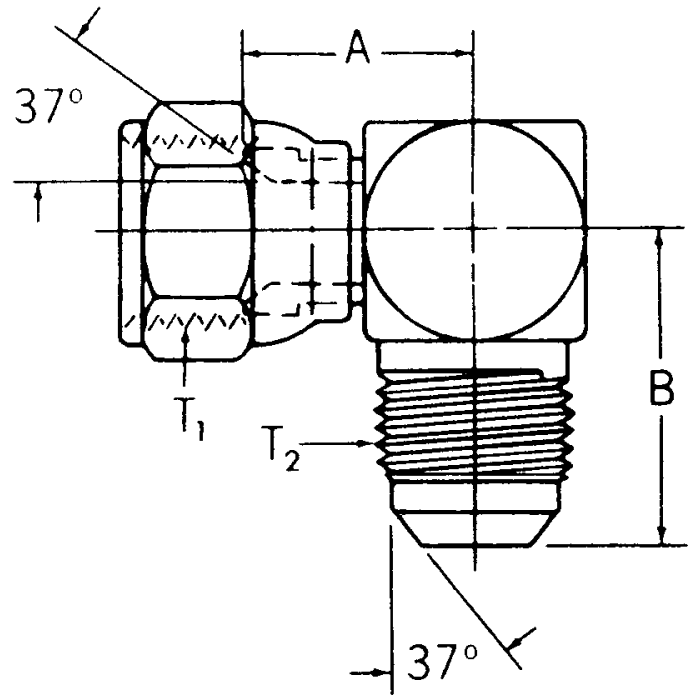

Steel Adapter, 1-1/16-12 Female JIC 37 deg Flare Swivel To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

A 1.74	B 1.41	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6500-08-12-FG	Thread 1 1-1/16-12	Thread 2 3/4-16	Thread Sealant No	Product Weight 0.52 lbs

Product Questions & Answers

What size are the threads on this elbow fitting?

Question by: Norm C on Feb 17, 2026, 8:31 PM

It's got a 1-1/16-12 female JIC 37 degree flare swivel on one side, and a 3/4-16 male JIC 37 degree flare on the other.

Answer by: Customer Support on Feb 19, 2026, 6:19 AM

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2071-12-12S	0.75	1-1/16-12	1-1/16-12	1.19	1.66
2071-16-16S	1	1-5/16-12	1-5/16-12	1.41	1.81
2071-20-20S	1.25	1-5/8-12	1-5/8-12	1.55	2.06
2071-24-24S	1.5	1-7/8-12	1-7/8-12	1.86	2.33
2071-4-4S	0.25	7/16-20	7/16-20	0.66	0.89
2071-6-6S	0.38	9/16-18	9/16-18	0.88	1.06
2071-8-8S	0.5	3/4-16	3/4-16	0.96	1.25
2071-10-10S	0.63	7/8-14	7/8-14	1.12	1.45
2071-10-8S		7/8-14	3/4-16	1.12	1.33
2071-14-14S	0.88	1-3/16-12	1-3/16-12	1.19	1.73
2071-4-6S		7/16-20	9/16-18	0.69	1.06
2071-5-5S	0.31	1/2-20	1/2-20	0.64	0.95
2071-8-6S		3/4-16	9/16-18
6500-03-03	0.18	3/8-24	3/8-24	1	0.83
6500-05-06		9/16-18	1/2-20	1.22	1.02
6500-08-06		9/16-18	3/4-16	1.32	1.25
6500-08-12		1-1/16-12	3/4-16	1.74	1.41
6500-10-08		3/4-16	7/8-14	1.47	1.45
6500-12-10		7/8-14	1-1/16-12	1.73	1.65
