main product photo

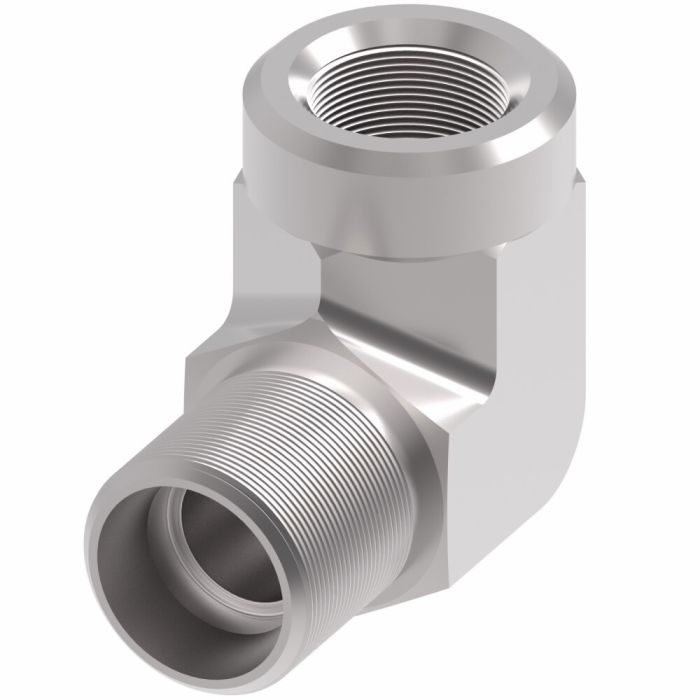

Steel Adapter, 1/2-20 Female JIC 37 deg Flare Swivel To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question
A
0.64
Alternate Part Numbers
Alternate Part Number C1BA23, Alternate Part Number MI-00318494, Alternate Part Number MINO-00015F65068
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
0.95
Drop Dimension
0.95
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.50
End Size 2
0.50
End Type 1
SAE 37
End Type 2
SAE 37
Hex Size 2
0.62
Minimum Working Temperature
-65
Supplier Part Number
2071-5-5S
Thread 1
1/2-20
Thread 2
1/2-20
Thread Sealant
No
Tube O.D.
0.31
Tube O.D.
0.31
Product Weight
0.09 lbs
Product Questions & Answers 1

Product Questions & Answers

this adapter, is it built for marine and offshore work, or is that more of a stretch for something like this?
Question by: Donna C on Jul 29, 2025, 11:24 AM
Marine and offshore drilling are both listed applications for this fitting. The Eaton Aeroquip 2071 Series is also rated for chemical processing, pulp and paper, and food and beverage environments, so it covers a pretty wide range of demanding conditions. The 90 degree elbow configuration with a female JIC swivel on one end makes it useful anywhere you need to change flow direction without putting rotational stress on the hose connection.
Answer by: Customer Support on Jul 31, 2025, 6:59 AM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Buy Now
2071-12-12S 0.75 1-1/16-12 1-1/16-12 1.19 1.66
2071-16-16S 1 1-5/16-12 1-5/16-12 1.41 1.81
2071-20-20S 1.25 1-5/8-12 1-5/8-12 1.55 2.06
2071-24-24S 1.5 1-7/8-12 1-7/8-12 1.86 2.33
2071-4-4S 0.25 7/16-20 7/16-20 0.66 0.89
2071-6-6S 0.38 9/16-18 9/16-18 0.88 1.06
2071-8-8S 0.5 3/4-16 3/4-16 0.96 1.25
2071-10-10S 0.63 7/8-14 7/8-14 1.12 1.45
2071-10-8S 7/8-14 3/4-16 1.12 1.33
2071-14-14S 0.88 1-3/16-12 1-3/16-12 1.19 1.73
2071-4-6S 7/16-20 9/16-18 0.69 1.06
2071-5-5S 0.31 1/2-20 1/2-20 0.64 0.95
2071-8-6S 3/4-16 9/16-18
6500-03-03 0.18 3/8-24 3/8-24 1 0.83
6500-05-06 9/16-18 1/2-20 1.22 1.02
6500-08-06 9/16-18 3/4-16 1.32 1.25
6500-08-12 1-1/16-12 3/4-16 1.74 1.41
6500-10-08 3/4-16 7/8-14 1.47 1.45
6500-12-10 7/8-14 1-1/16-12 1.73 1.65
