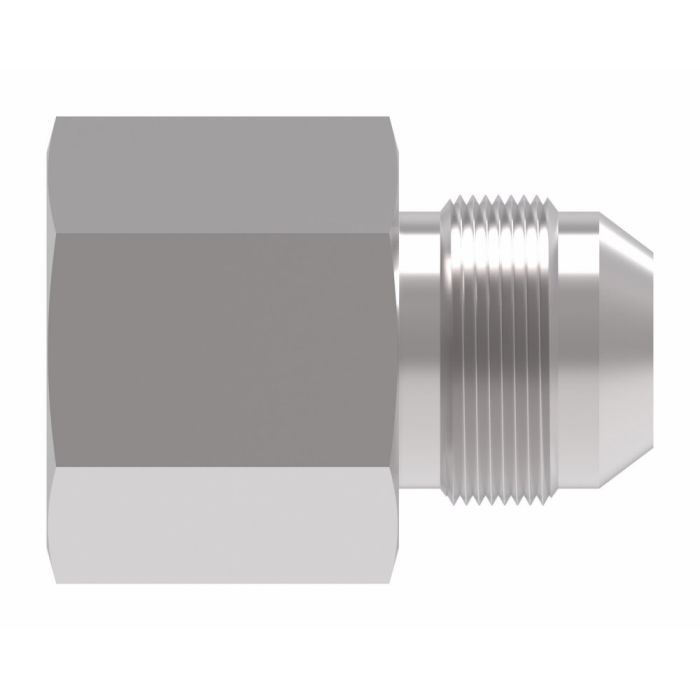

Steel Adapter, 1/2-14 Female NPT Swivel To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

A 1.23	Alternate Part Numbers Alternate Part Number C1AZ79, Alternate Part Number MI-00321866, Alternate Part Number MINO-00015F66136	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.50	End Size 2 0.75	End Type 1 NPSM	End Type 2 SAE ORB	Hex Size 2 0.88	Minimum Working Temperature -40	Supplier Part Number 2066-8-8S	Thread 1 1/2-14	Thread 2 3/4-16	Thread Sealant No	Product Weight 0.16 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a port on my hydraulic manifold that's 3/4-16 SAE O-ring boss. Will this adapter let me thread in a 1/2 NPT female line without a bunch of extra fittings in the way?

Question by: Randy K on Dec 28, 2025, 1:24 PM

Straight shot, no extra pieces needed. The 2066-8-8S threads directly into a 3/4-16 SAE O-ring boss port on one end, and the other end accepts a 1/2-14 female NPT swivel connection. That swivel feature on the NPT side helps with alignment when you're making up the connection, which cuts down on the wrestling match you'd otherwise have getting everything to line up clean.

Answer by: Customer Support on Dec 30, 2025, 6:35 AM

got a hose end with 1/2-14 female npt swivel, will this screw right onto that and give me a 3/4-16 sae o-ring boss on the other side?

Question by: Kent A on Apr 9, 2025, 5:35 PM

For a straight adapter that goes from pipe to SAE O-ring Boss, this part is set up exactly that way: one end is 1/2-14 female NPT swivel and the other end is a 3/4-16 male SAE O-ring boss straight thread.

Answer by: Customer Support on Apr 11, 2025, 4:23 PM

Will this fitting work to connect a female NPT pipe thread to a SAE O-ring boss?

Question by: Gene H on Oct 2, 2025, 1:34 PM

This adapter directly connects a 1/2-14 female NPT swivel to a 3/4-16 male SAE O-ring boss. It's a straight adapter, as the name suggests.

Answer by: Customer Support on Oct 3, 2025, 3:55 PM

Similar Products

Model Number	Thread 1	Thread 2	A
2066-16-16S	1-11-1/2	1-5/16-12	1.59
2066-4-4S	1/4-18	7/16-20	1.05
2066-12-12S	3/4-14	1-1/16-12	1.58
2066-4-6S	1/4-18	9/16-18	1.14
2066-6-6S	3/8-18	9/16-18	1.14
2066-6-8S	3/8-18	3/4-16	1.19
2066-8-10S	1/2-14	7/8-14	1.3
2066-8-8S	1/2-14	3/4-16	1.23
6900-06-08-O	1/2-14	9/16-18	1.23
6900-08-04-O	1/4-18	3/4-16	1.22
