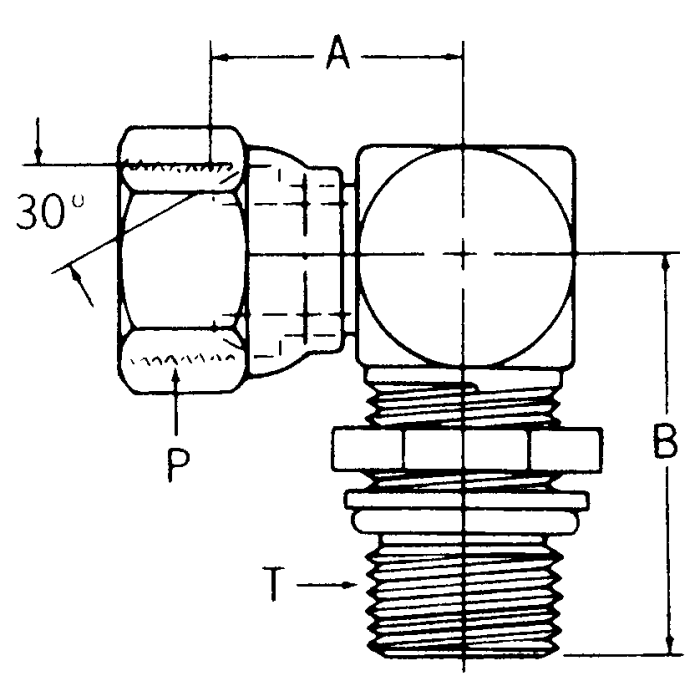

Steel Adapter, 1/2-14 Female NPT Swivel To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Alternate Part Numbers Alternate Part Number 2068-8-12S, Alternate Part Number 6901-12-08, Alternate Part Number A2068-8-12S, Alternate Part Number C1DZ70, Alternate Part Number MI-08579849, Alternate Part Number MINO-00028X08300	B 1.92	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6901-12-08-NWO-FG	Thread 1 1/2-14	Thread 2 1-1/16-12	Thread Sealant No	Product Weight 0.62 lbs

Product Questions & Answers 1

Product Questions & Answers

does this thing work as a straight swap for a 1/2 NPT female port connecting to a SAE O-ring boss fitting, or is there something extra I need to account for?

Question by: Lee T on Jan 19, 2026, 8:23 AM

That connection is exactly what this adapter handles. One end is a 1/2-14 female NPT swivel, and the other is a 1-1/16-12 male SAE O-ring boss. The swivel end gives you some flexibility during installation so you're not fighting the line to get it to sit right. The 90-degree angle means your hose or pipe routes away from the port instead of straight out, which is real handy in tight quarters where a straight fitting just won't clear.

Answer by: Customer Support on Jan 20, 2026, 3:52 PM

Similar Products

Model Number	Thread 1	Thread 2	A	B
2068-4-4S	1/4-18	7/16-20	0.68	1.05
2068-12-10S	3/4-14	7/8-14	1.09	1.7
2068-12-12S	3/4-14	1-1/16-12	1.15	1.94
2068-16-16S	1-11-1/2	1-5/16-12	1.44	2.05
2068-4-6S	1/4-18	9/16-18	0.73	1.25
2068-6-6S	3/8-18	9/16-18	0.83	1.25
2068-6-8S	3/8-18	3/4-16	0.91	1.45
2068-8-10S	1/2-14	7/8-14	0.97	1.7
2068-8-8S	1/2-14	3/4-16	0.91	1.45
6901-12-08-NWO	1/2-14	1-1/16-12		1.92
