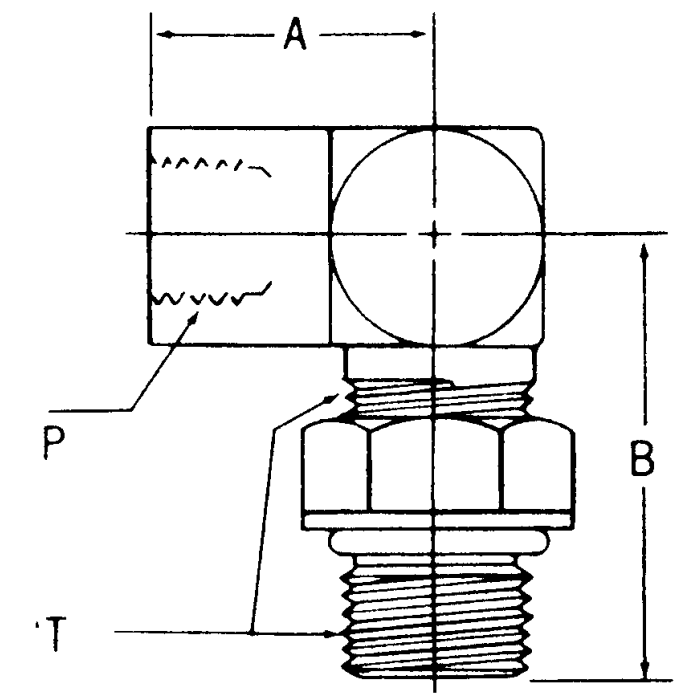

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

A 1.23	Alternate Part Numbers Alternate Part Number 6805-10-08, Alternate Part Number 6805-10-08-NWO-FG, Alternate Part Number A206801-8-10S, Alternate Part Number C1DZ15, Alternate Part Number MI-08579765, Alternate Part Number MINO-00028X08217	B 1.80	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6805-10-08-NWO-FG	Thread 1 1/2-14	Thread 2 7/8-14	Thread Sealant No	Product Weight 0.47 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 1/2 NPT female port on a pump housing and need to swing it 90 degrees over to a SAE straight thread fitting, this the right piece for that?

Question by: Patty J on Feb 2, 2026, 11:42 AM

That's what this adapter is built for. One end is 1/2-14 female NPT, the other is 7/8-14 male SAE O-Ring Boss, and the 90 degree elbow lets you redirect the line right at the connection point. The O-ring boss end seals at the thread engagement, so as long as your port matches 7/8-14 MORB, you're in good shape.

Answer by: Customer Support on Feb 4, 2026, 9:43 AM

Similar Products

Model Number	Thread 1	Thread 2	A	B
206801-8-8S	1/2-14	3/4-16	1.23	1.73
206801-12-12S	3/4-14	1-1/16-12	1.36	2.04
206801-6-8S	3/8-18	3/4-16	1.02	1.46
6805-04-04-NWO	1/4-18	7/16-20	0.87	1.16
6805-06-04-NWO	1/4-18	9/16-18	0.88	1.31
6805-10-08-NWO	1/2-14	7/8-14	1.23	1.8
6805-12-08-NWO	1/2-14	1-1/16-12	1.24	1.94
6805-20-20-NWO	1-1/4-11-1/2	1-5/8-12	1.7	2.38
