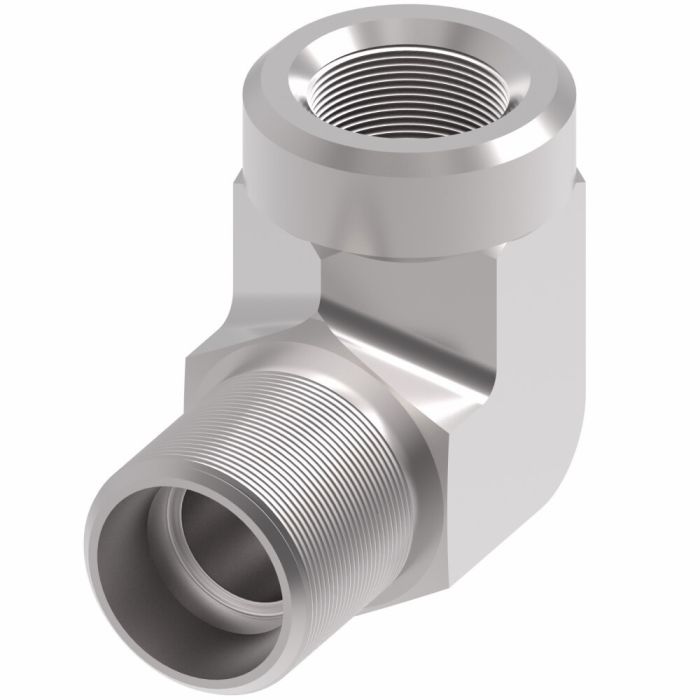

Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

A 1.23	Alternate Part Numbers Alternate Part Number C1DV73, Alternate Part Number MI-00320472, Alternate Part Number MINO-00015F65871	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	B 1.73	Drop Dimension 1.73	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13556	End Size 1 0.50	End Size 2 0.75	End Type 1 NPTF	End Type 2 SAE ORB	Hex Size 2 0.87	Minimum Working Temperature -65	Seal Part if Included 22617-8	Supplier Part Number 206801-8-8S	Thread 1 1/2-14	Thread 2 3/4-16	Thread Sealant No	Product Weight 2.19 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 1/2-14 female npt line into a 3/4-16 ORB port, is this the right elbow for that?

Question by: Cheryl F on May 18, 2025, 4:52 PM

For that thread combo, it matches. One end is 1/2-14 female NPTF and the other end is 3/4-16 male SAE O-Ring Boss, and it’s a 90 degree elbow adapter.

Answer by: Customer Support on May 19, 2025, 5:51 PM

got a tight spot on a line, is this the 90 degree elbow that goes from 1/2-14 female npt over to 3/4-16 male sae o-ring boss?

Question by: Rick T on Sep 5, 2025, 5:11 PM

For fitment, the ends on this adapter are 1/2-14 Female NPTF on one side and 3/4-16 Male SAE O-Ring Boss (straight thread O-ring) on the other, built as a 90 degree elbow.

Answer by: Customer Support on Sep 7, 2025, 8:26 AM

Similar Products

Model Number	Thread 1	Thread 2	A	B
206801-8-8S	1/2-14	3/4-16	1.23	1.73
206801-12-12S	3/4-14	1-1/16-12	1.36	2.04
206801-6-8S	3/8-18	3/4-16	1.02	1.46
6805-04-04-NWO	1/4-18	7/16-20	0.87	1.16
6805-06-04-NWO	1/4-18	9/16-18	0.88	1.31
6805-10-08-NWO	1/2-14	7/8-14	1.23	1.8
6805-12-08-NWO	1/2-14	1-1/16-12	1.24	1.94
6805-20-20-NWO	1-1/4-11-1/2	1-5/8-12	1.7	2.38
